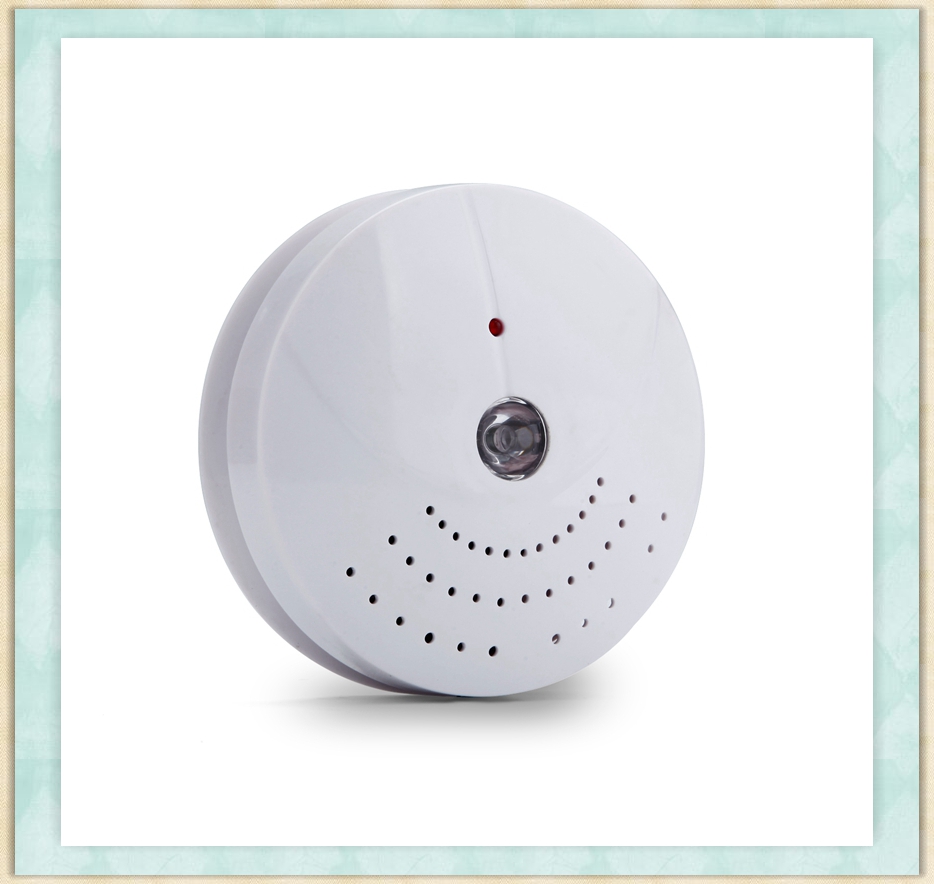

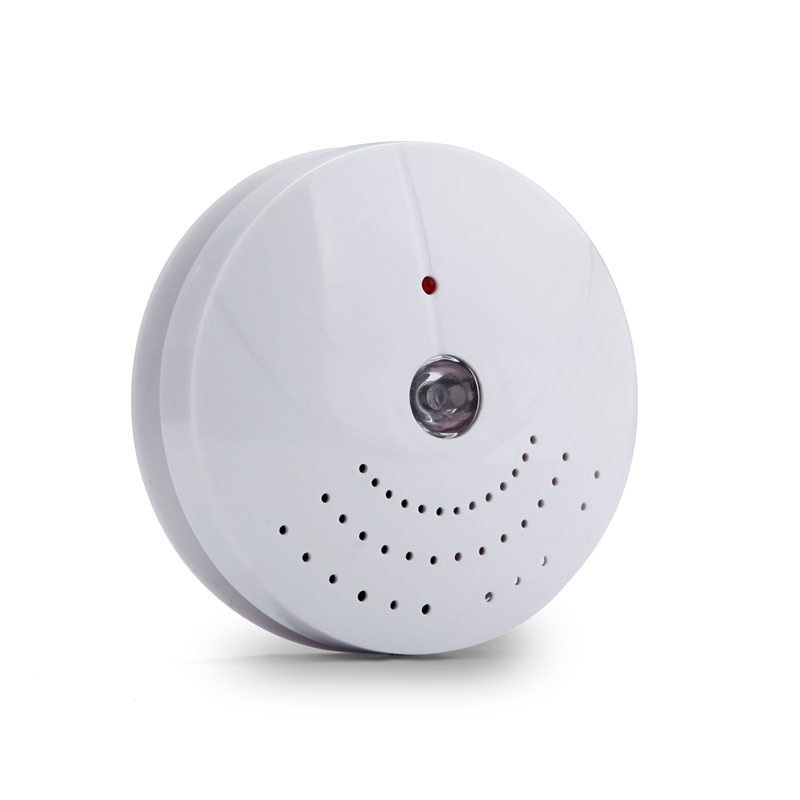

Photoelectric Stand Alone Fire Alarm Smoke Detector

General Details

Main Features:

SR-803L: Photoelectric smoke detector (independent) With LED escape light

Light Labyrinth with High Stability

Adopted CMOS with low power consumption

High Adaptability to the Ambient, with Dustproof, mothproof, moisture proof and anti-white light function

Sound & Flash Alarm, Low Voltage indication, Self-test Function

Manual test, Auto Reset Function

Unique SMD Design

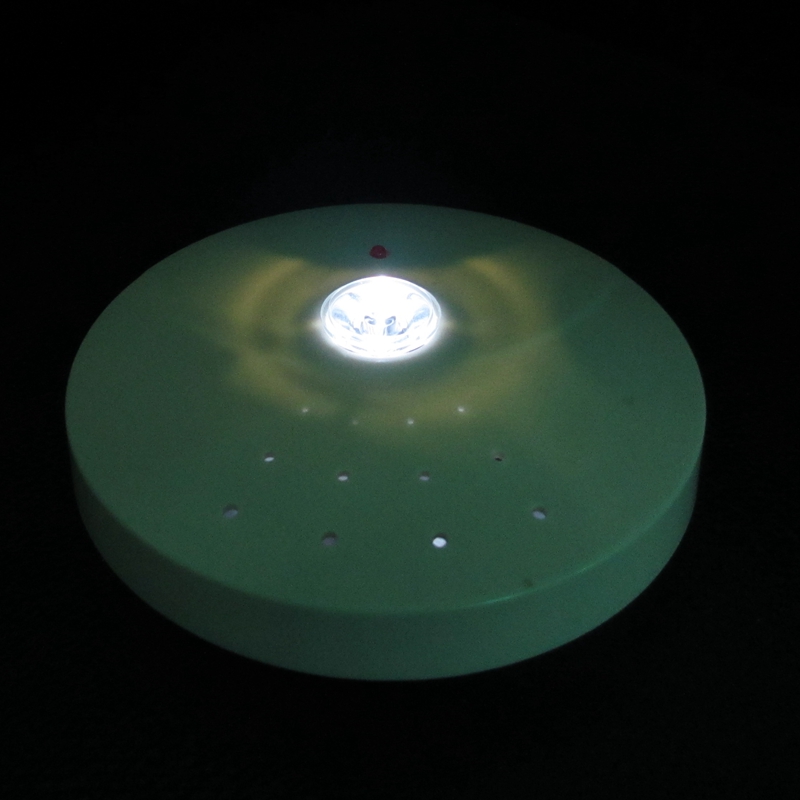

Lighting when breaking out of fire

Technical specification:

Input VoltageDC9V battery
Static Current≤20uA
Alarm Current≤15mA
Operating Temperature-10℃~+50℃
Opterating Humidity≤95%RH
Alarm OutputSound & Flash Alarm
Detecting area60 square meter (with 4 meter height)
Alarm Sound Level≥85dB/m
size135*40mm
