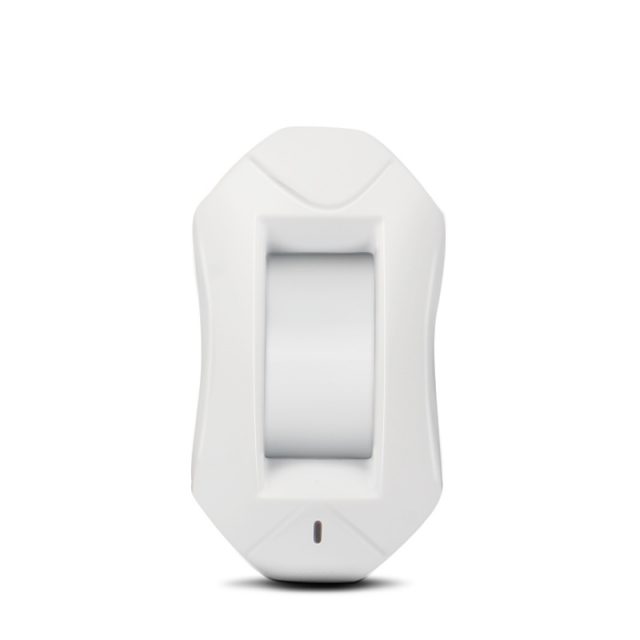

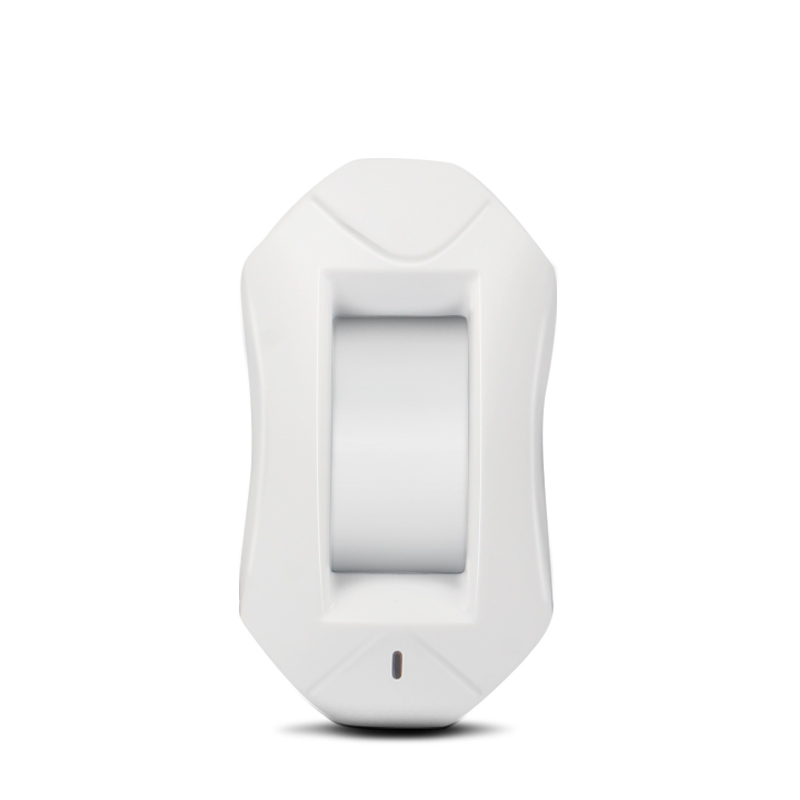

mini 12V gsm infrared wired curtain pir human motion movement detector

General Details

Main features:

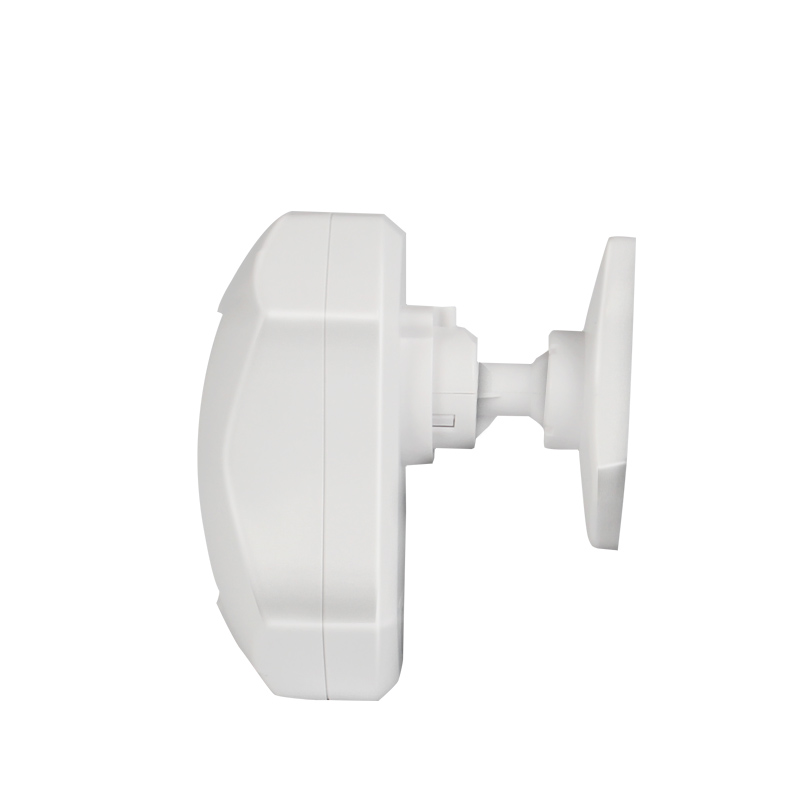

1.Screwing-type mounting bracket, more stable
2.Adjustable detecting distance
3.Auto temperature compensation
4.Low power indication
5.Tamper alarm function
6.Alarm delay optional
7.Anti RF(20V/m -1GHz)
8.Wireless signal output
9.Low power consumption design
10.SMT process, anti-RFI, anti-EMI

Technical specification:

Operating voltageDC9-24V
Consumption current≤18mA(DC12V)
Operating temp -10ºC~+50ºC
Installation modewall mounted
Installation heightabout 1.8m
Detecting distance9m
Detecting angle15 degrees
Alarm output N.C
Anti-dismantle switch N.C
Outline size100*55*47.5*mm
