360 degree, wired, high sensitivity
General Details
PIR Detector:

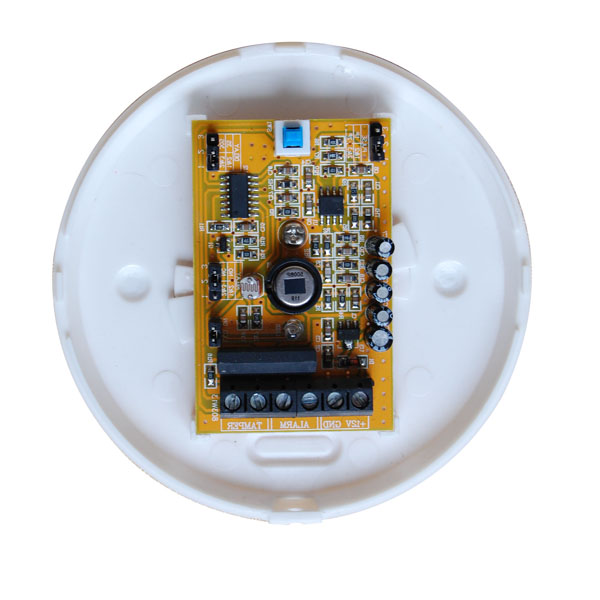

SR-603W: 360 degree wide angle PIR Detector
Main features:
MCU control, resist false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference (20V/m-1GHz)
Fresnel lens
Wall/ceiling installation
Alarm output N.C. or N.O.
Alarm time optional (3s or 30s)
Intelligent floating thresholds technology
Patent appearance design
SMT manufacture technology with high stability
Technological details
Model NO. | SR-603W |
| Operating voltage | DC9V~16V |
| Static current | NC≤15mA NO≤6mA |
| Alarm current | NC≤9mA NO≤18mA |
| Alarm output | Relay output |

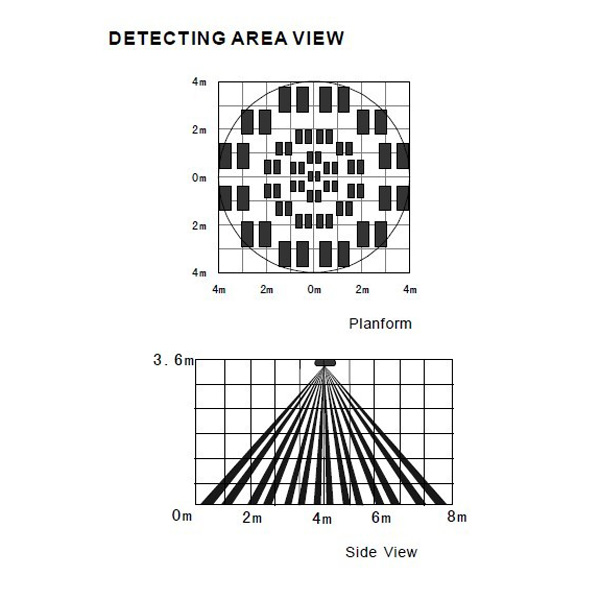

| Detecting angle | 360° |
| Detecting distance | 6m |
| Operating temperature | -10ºC~+50ºC |
| Dimension | 100mm(Dia)*32mm(H) |
