General Details
Main features:

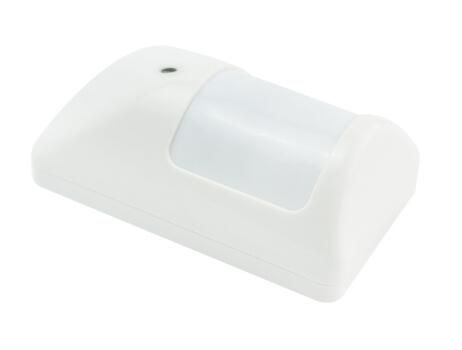

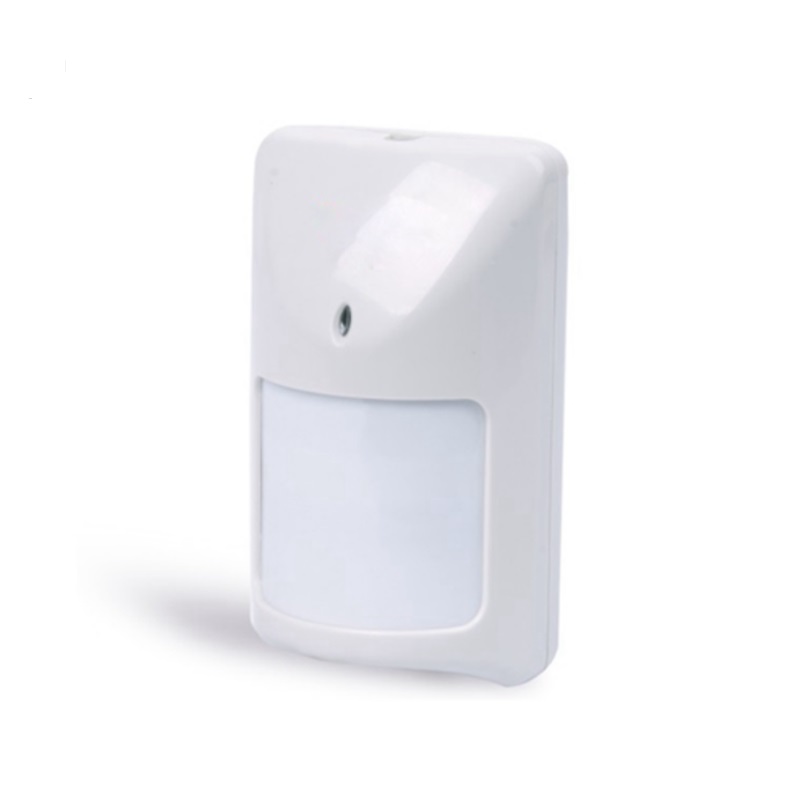

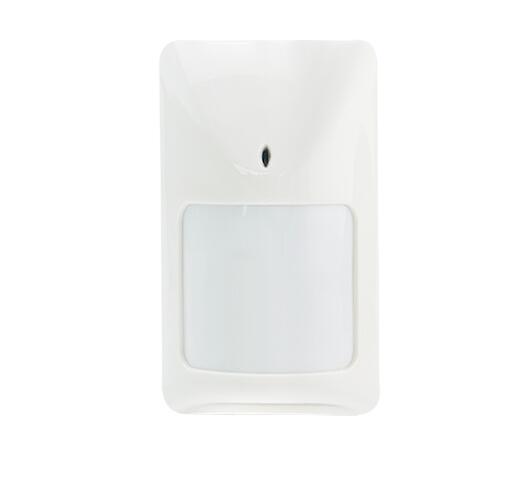

SR-610W Wide Angle PIR Detector (Infrared sensor)
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
Technical specification:
operating voltage: DC 9-16V
consumption current: less than 18mA(DC12V)
operating temp.: -10 to +50 degrees

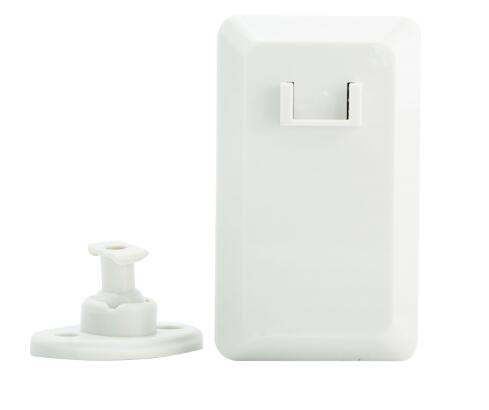

installation mode: wall or corner mounted
installation height: about 2.2m

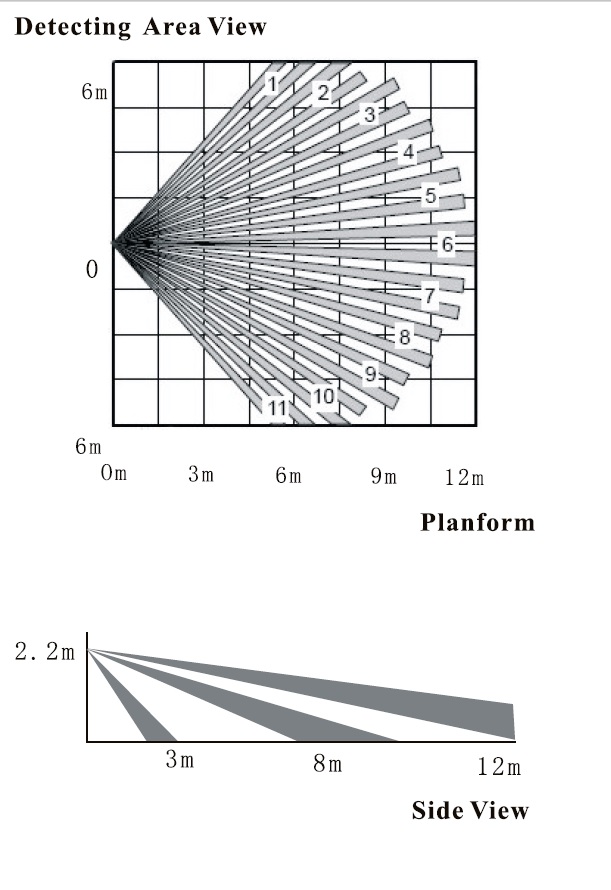

detecting distance: 12m
detecting angle: 110 degrees
alarm output: N.O./ N.C. relay optional
anti-dismantle switch: N.C.
dimension: 89*52.5*38.5mm
