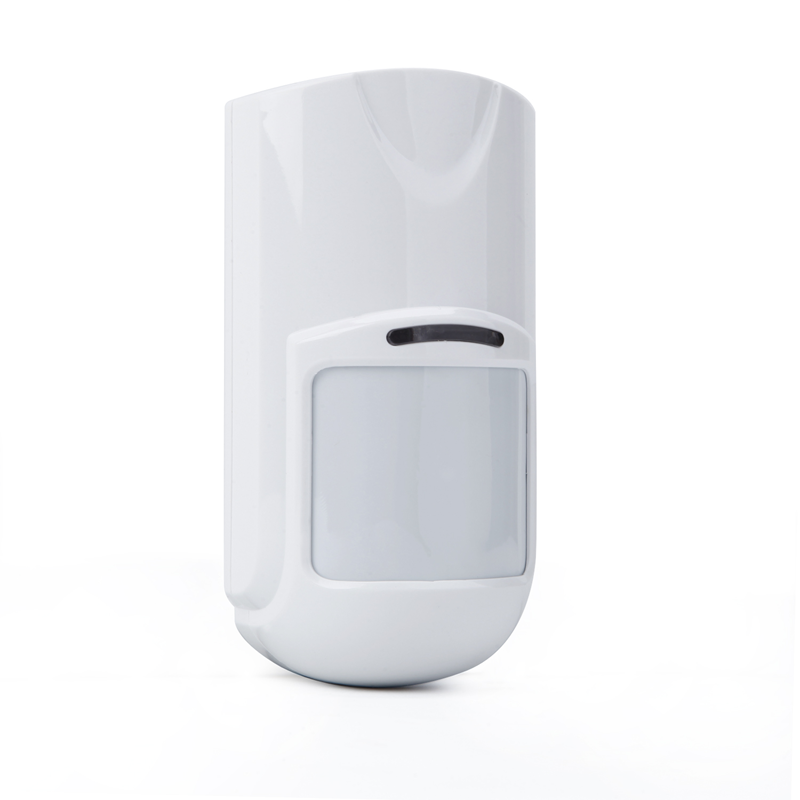

Tri-Tech PIR/Microwave Motion Detector

General Details

Main features:

1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional

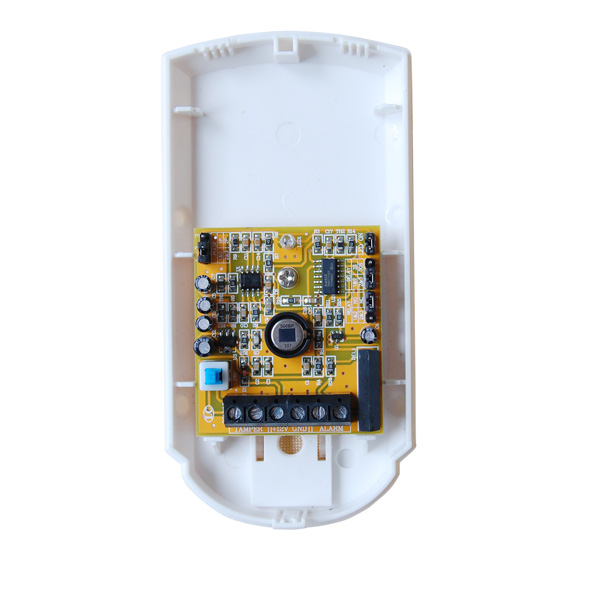

9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5

Technical specification:

Model NO.

SR-605DTP

Operating voltage

DC9V-24V

Current consumption

≤30mA

Alarm  indicator

Green: infrared triggered, Yellow:microwave triggered, Red:Alarm

Tamper output

NC, contact DC28V 100mA

Alarm output

NC/NO optional, contact DC28V 100mA

Alarm time

0.3m/s – 3m/s

Self-testing time

60s

Microwave antenna  type

X-Band plane antenna with high frequency GaAs :FET oscillator

Pet immunity

20kg

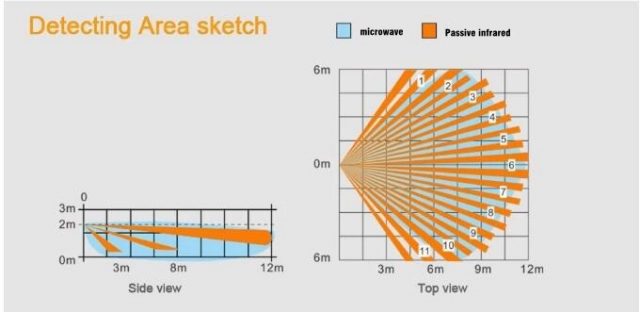

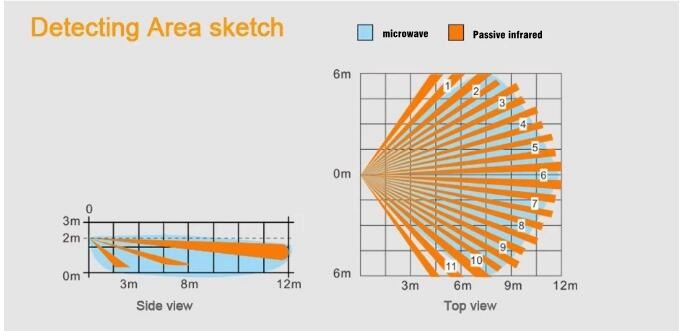

Detecting angle

90°

Detecting distance

12m

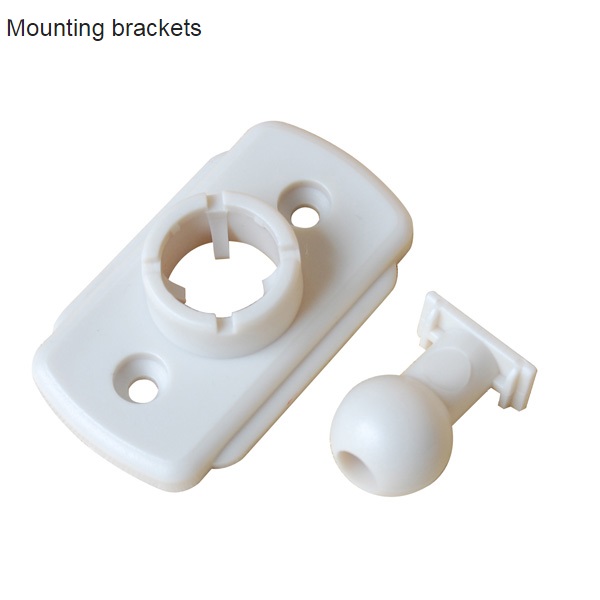

Installation

Wall or corner mounted

Working environment

-10℃~+50℃,(≤95%RH No congelation)

Dimension

123*62*46mm
