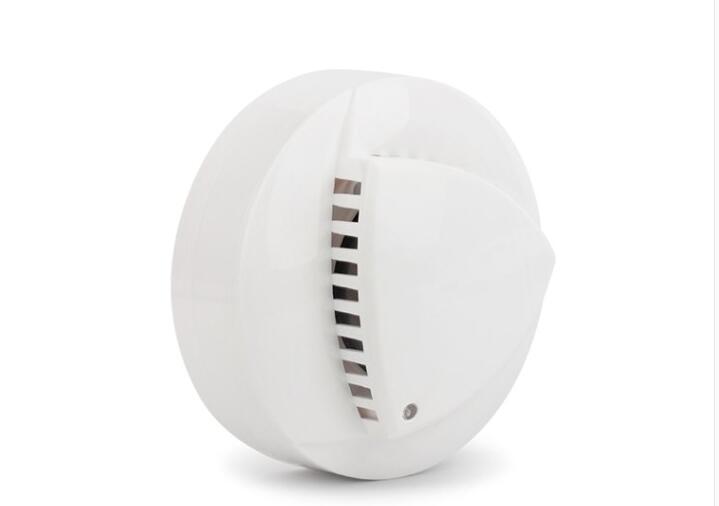

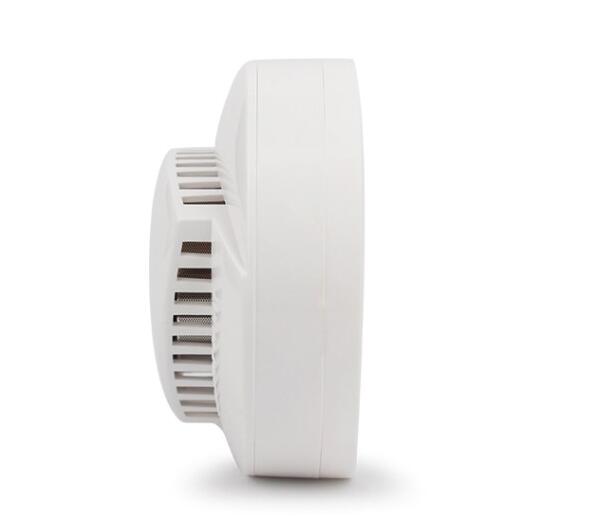

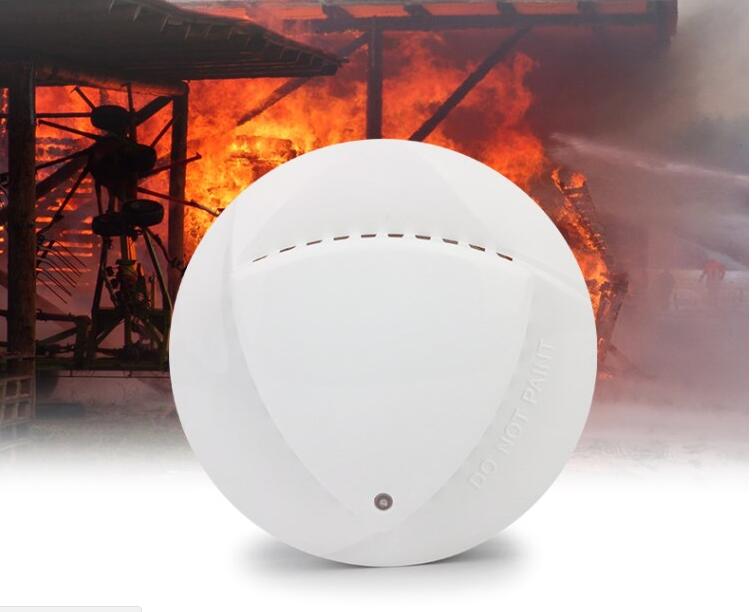

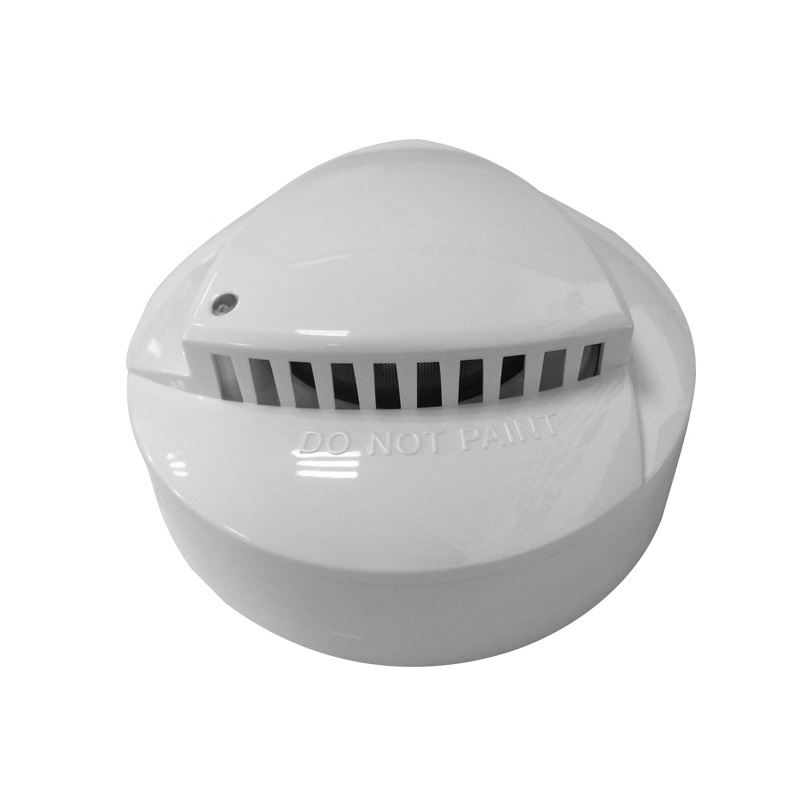

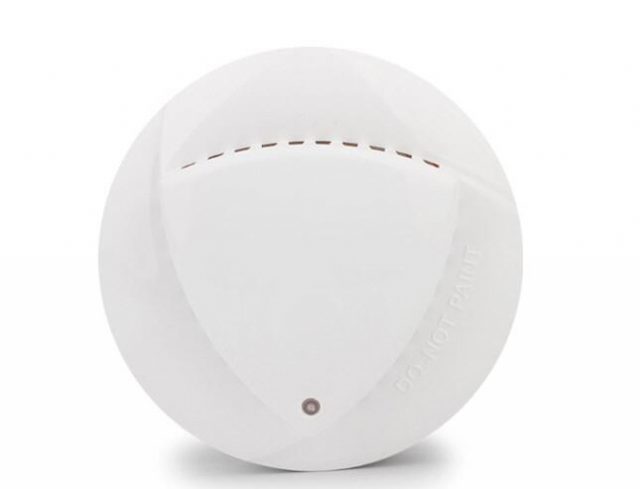

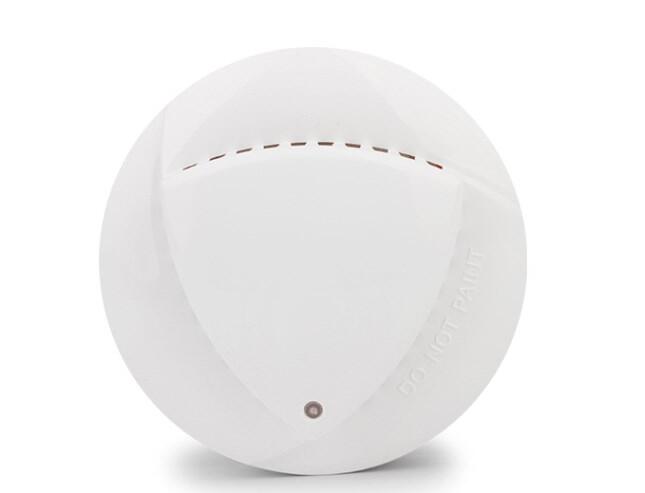

12v smoke detector with photoelectric sensor

General Details

 Main features:

1.Power supply non-polar input

2.Infrared photoelectric sensor

3.MCU processing, eliminate false alarm

4.Network LED indicating alarm

5.SMT manufacturer technology, high stability

6.Dustproof, mothproof, anti-light interference design

7.Stainless steel shield in chamber, anti-RFI(20V/m-1GHz)

8.Execute criterion: GB4715,EN54-7, UL539

Technical specification:

Operating voltageDC9~35V
Alarm temperature57℃
Static current20uA
Alarm current35mA@DC12V;83m@DC24V
Alarm outputRemote LED indicator
InstallationCeiling mounted
Sensitivity0.15dB/m(±0.03dB/M)
Working environment-10℃~+50℃(≤95%RH No congelation)

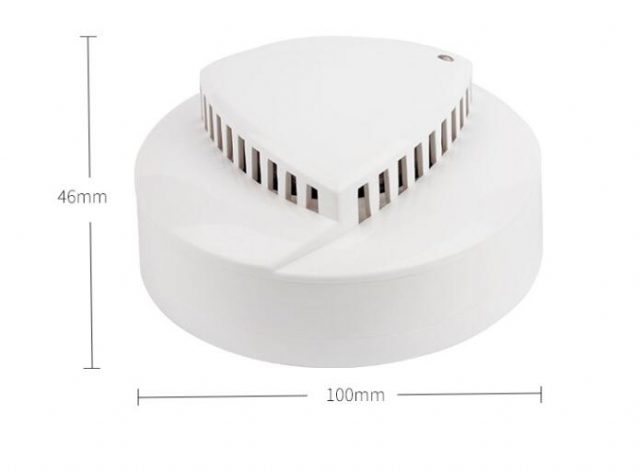

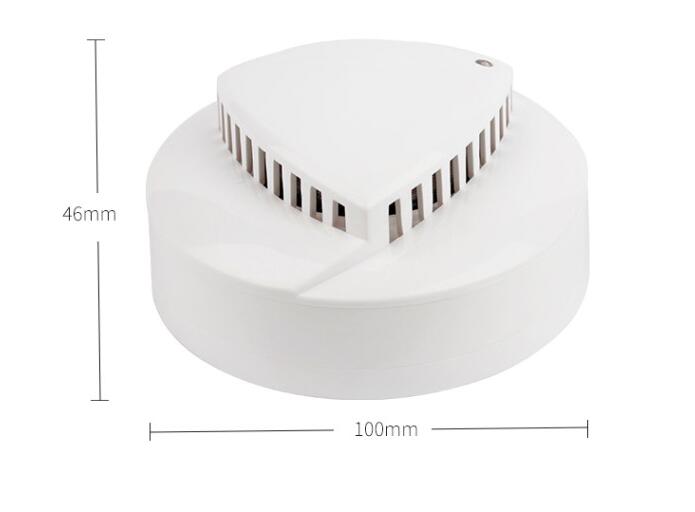

Dimension 100*46mm
