General Details
Main technical parameters:
Power supply voltage | 220V/AC ~ 240V/AC |
Power frequency | 50 ~ 60Hz |
Ambient Light | <3LUX to daylight illumination (adjustable, adjustable night mode to 24-hour mode) |

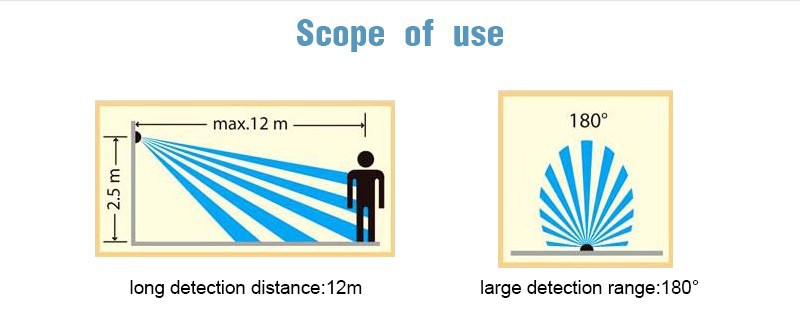

Detection range | 8m max |
Load power | the principle of resistive electrical resistive 1200W (incandescent), emotional 300W (energy saving lamps, fluorescent lamps, ring tube, LED exhaust fan, alarms, and other appliances) (220V/AC 240V/AC) |
Time Delay | min: sec +- 3 seconds, max: 7 minutes +- 2 min (adjustable) |
Detection angle | 180 degree |
Operating Temperature | -20 ~ 50 degree |
Relative humidity | less than 93% RH |
Installation height | 1.5m to 3.5m |
Power consumption | 0.45W (static 0.1W) |
Detection Motion Speed | 0.6 to 1.5m / s |
IP grade | IP44 |
