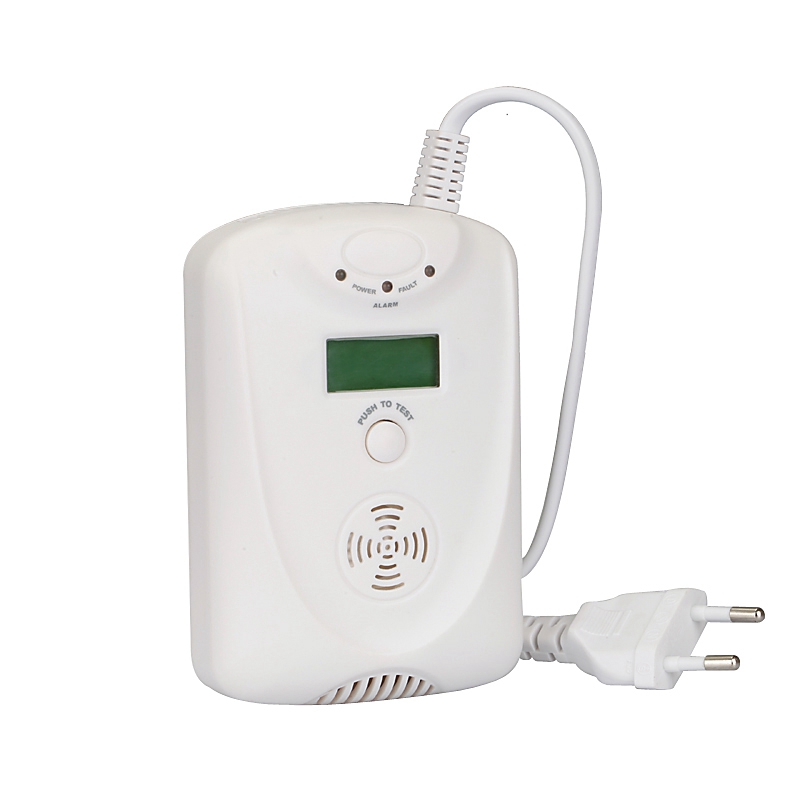

Natural gas or LPG&CO system sensor gas detector
General Details
Main features:
1. High reliability catalytic combustion sensor ,Gas &CO combination detector
2. LED display presents gas level
3. Backup battery function(can support 9V battery) , low battery warning
4. MCU processing
5. Auto-check malfunction
6. Auto-reset after alarm
8. SMT manufacture technology
9. Wall installation
10.It can work with Solenoid valve or Exhaust Fan
2. LED display presents gas level
3. Backup battery function(can support 9V battery) , low battery warning
4. MCU processing
5. Auto-check malfunction
6. Auto-reset after alarm
8. SMT manufacture technology
9. Wall installation
10.It can work with Solenoid valve or Exhaust Fan
Technical specification:
| module number | SR-912DVY |
| Operating voltage | AC100-240V |
| Gas species | Natural gas or LPG&CO |
| Sensor | Natural gas: Catalytic type CO: Electrochemical |
| Drivable accessories | Solenoid valve or Exhaust Fan (Please purchase separately) |
| Alarm level | Natural gas:5%LEL CO: 150PPM±50PPM |
| Aalarm output | Sound&LED flash alarm |
| Sound level | 85dB/3m |
| Rated power | 2.5W |

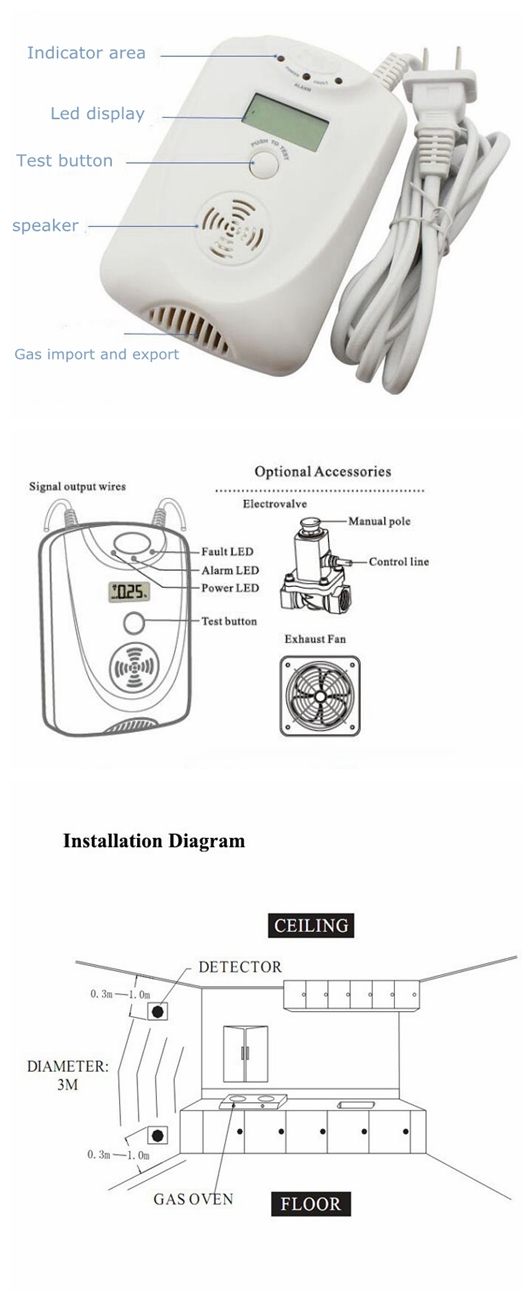

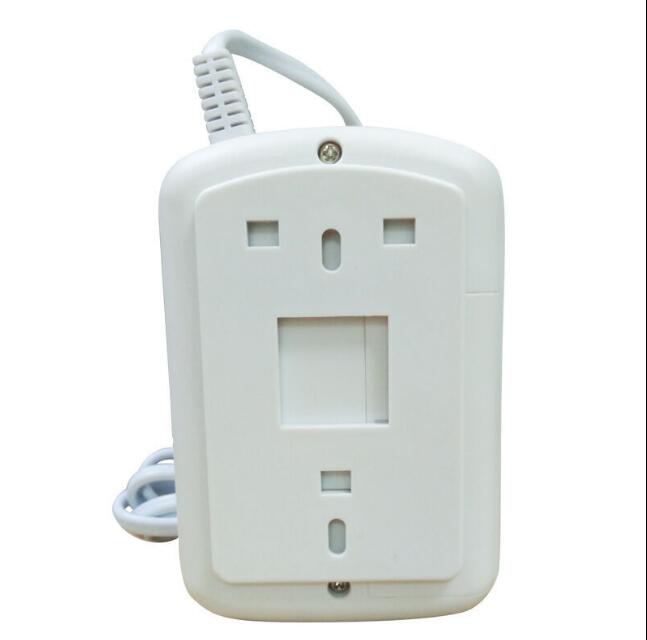

| Installation | Wall mounted |
| Working environment | -10℃~+50℃(≤95%RH No congelation) |

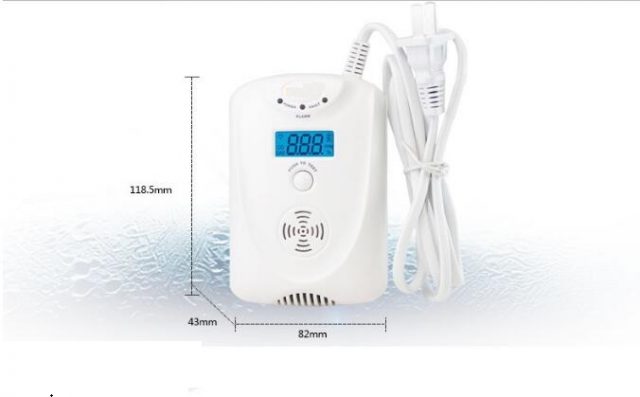

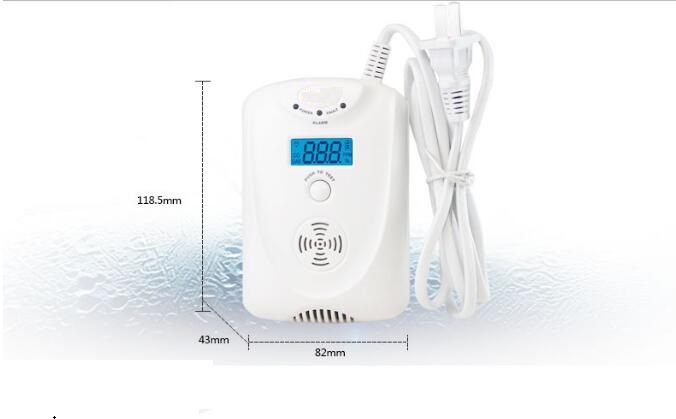

| Dimension | 118.5*82*43mm |
dav
SR-912(1) Gas detector
For LPG, Natural gas, CO;
