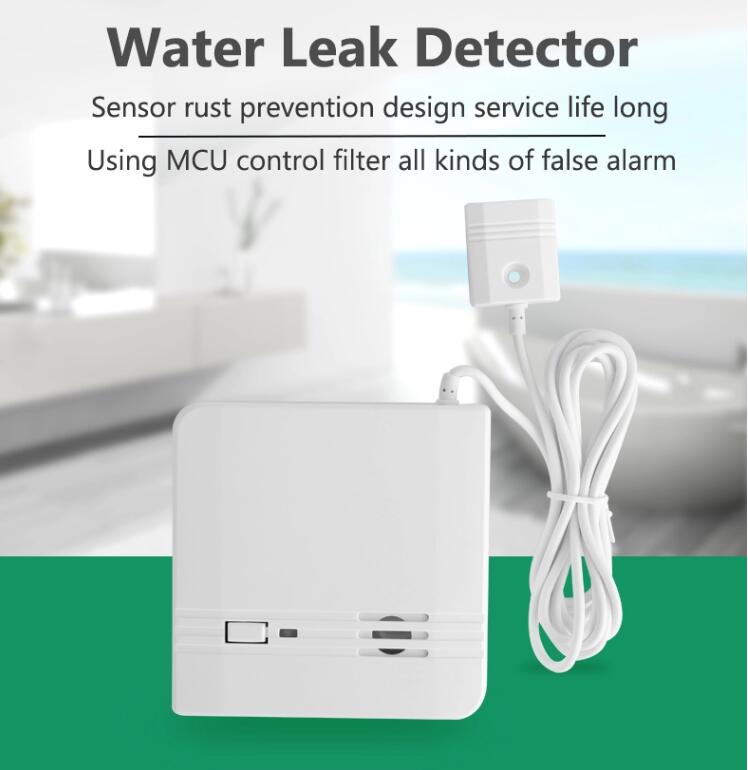

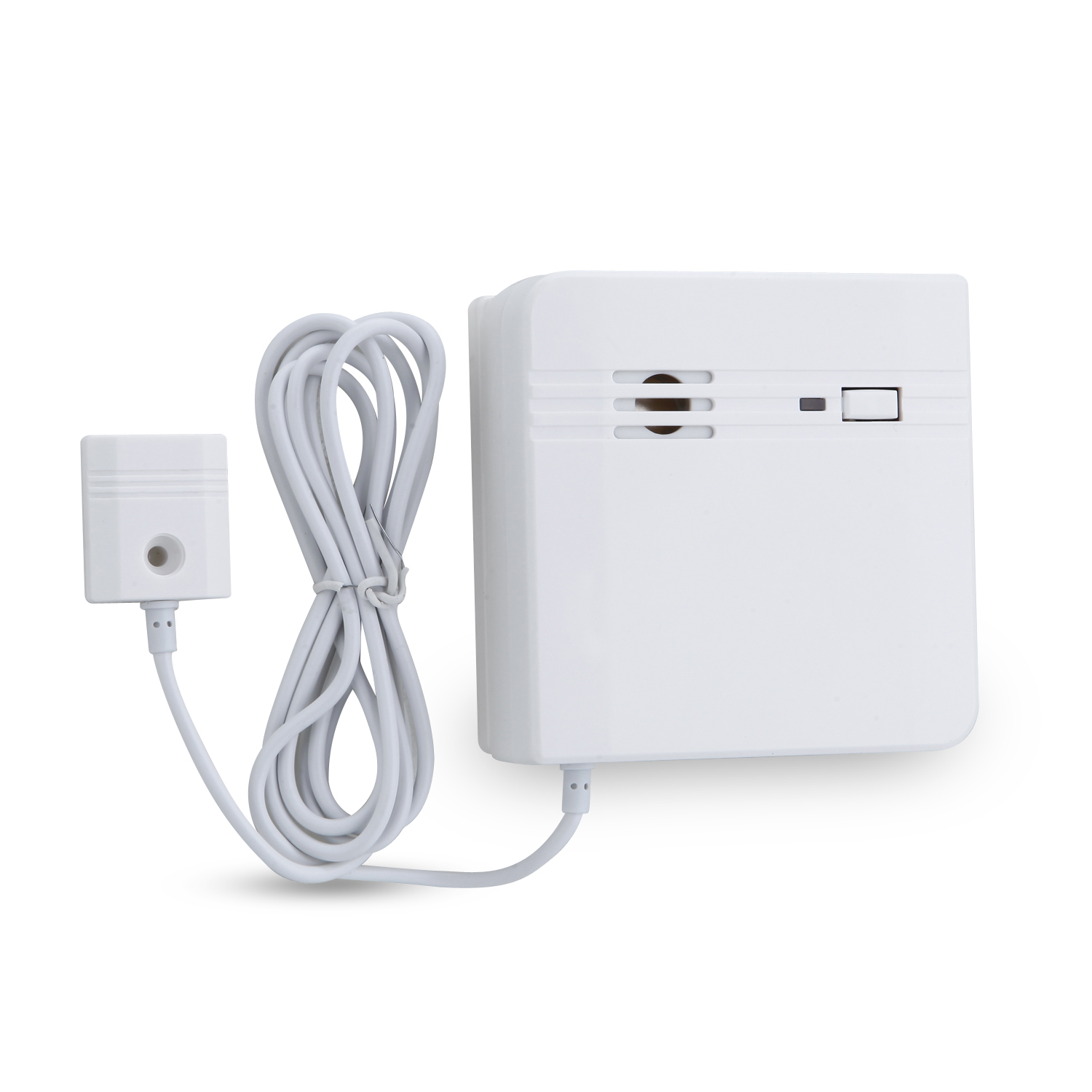

RF water leakage detector for wireless alarm system
General Details
Main features:
1.Rust-proof metal probe, long service life
2.Sound and flash alarm
3.Low power consumption design

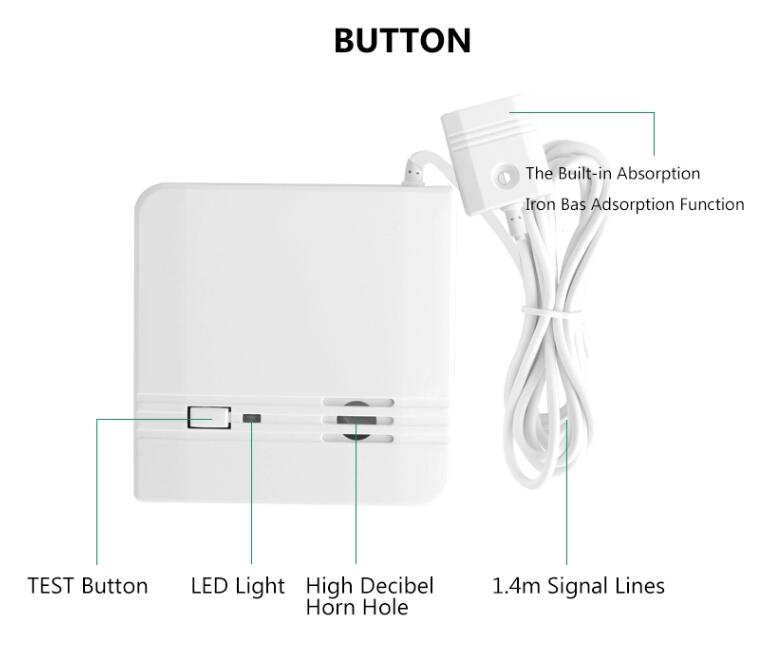

4.Test and hush button
5.Low battery warning
6.MCU processing, resist false alarm efficiently
7.SMT manufacture technology, good stability
Technical specification:
| Model NO | SR-W03BHR |
| Operating voltage | DC3V(2X1.5 AA alkaline batteries) |
| Static Current | ≤10uA |
| Alarm Current | ≤50mA |
| Alarm Indicator | Red LED and buzzer sound |
| Fault Indicator | Orange LED |
| Alarm output | Wireless transmission(315Mhz or 433Mhz) |
| Working environment | 0-60℃ |
| Humidity | 0-80%RH(no congelation) |
| Sound level | ≥85dB/3m |
| Hush Time | 10 minutes |
| Installation | Wall mounted or board installed |
SR-W03 series Water leakage detector
Independent & Network & wireless type optional
