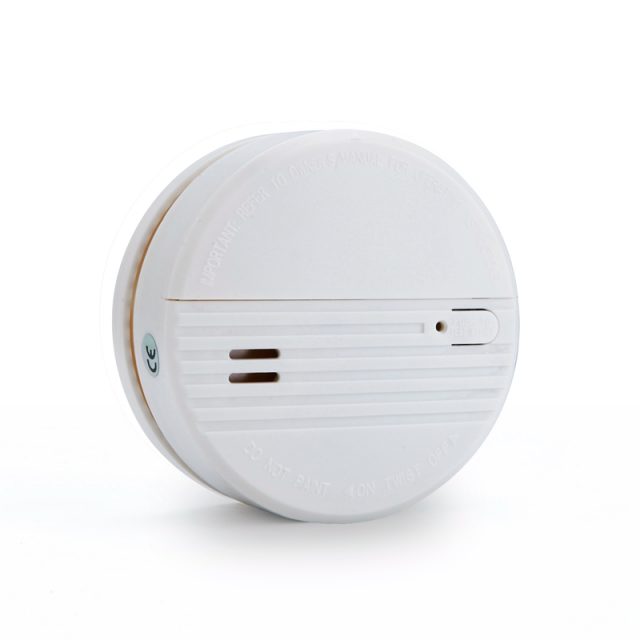

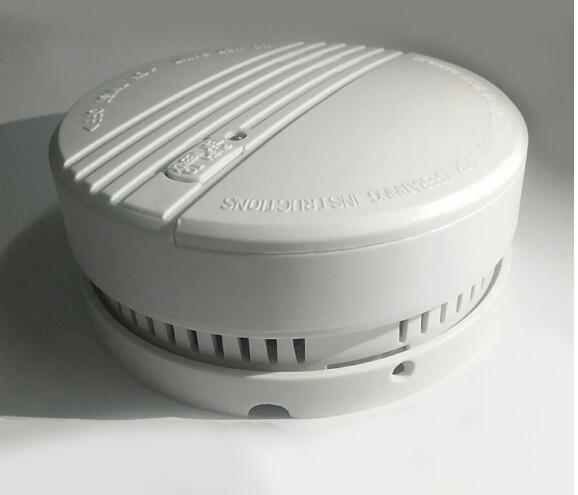

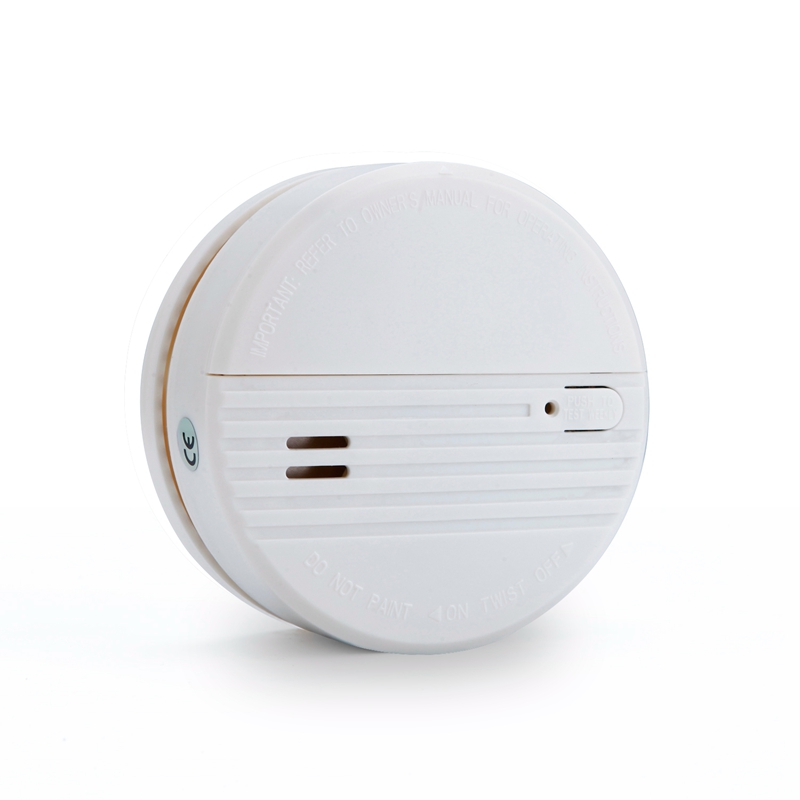

Independent photoelectric smoke detector

General Details

Main features:

*Could be installed in motor homes, ships etc . quavering places.

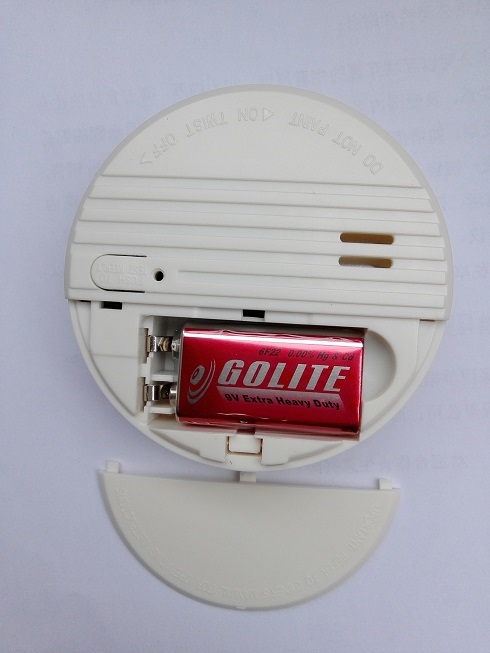

*on top surface. Battery replacement is very convenient

*loud alarm sound > 85 decibel.

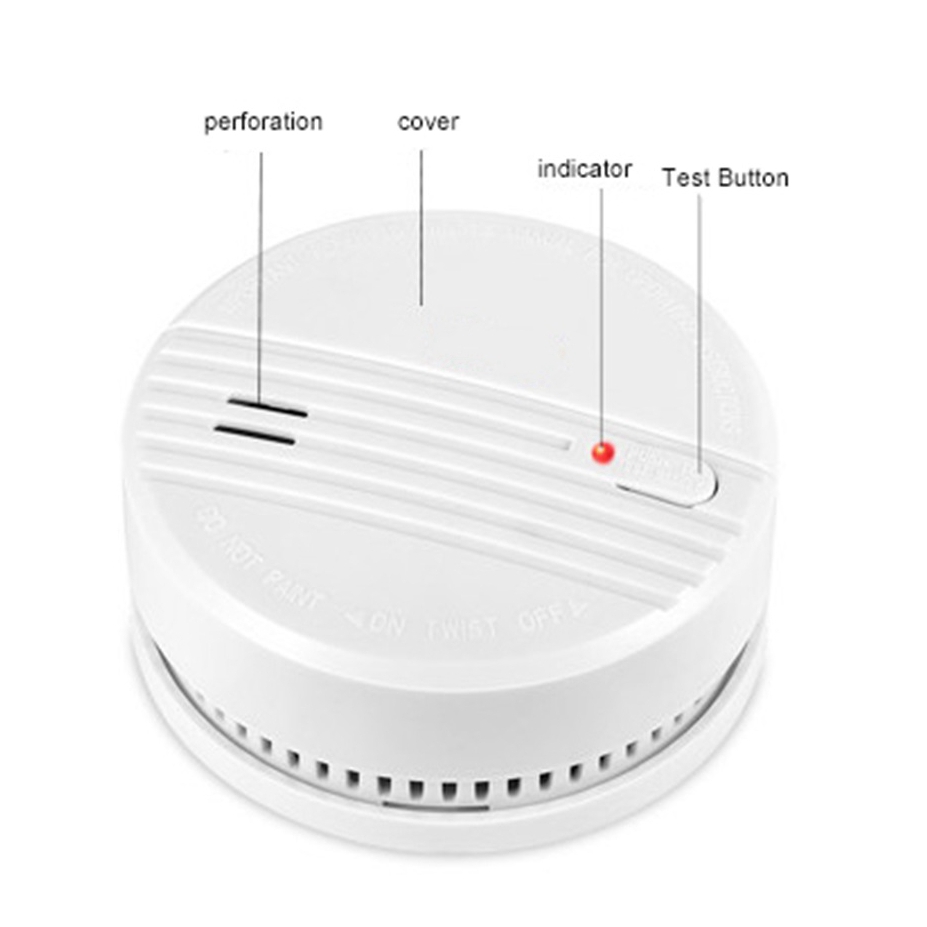

*Verifies if the smoke alarm is operating properly.

*Low battery warning

* Convenient to install and maintain.



Technical specification:

Power supplyDC 9V battery
Standby current<12µA
Alarm current<10mA
Alarm sound>85dB (3m)
Sensor typePhotoelectric
Battery life after low battery warning>30days
Temperature range0°C ~ 49°C (32°F ~ 120°F)
Humidity10%~90%RH (No icing or condensation)
DimensionΦ95x41mm
Executive  criteriaEN14604:2005; GB4715-2005
Detecting  area80m  at  6-12m  installation  height;  60m  at  installation  height  <6m
