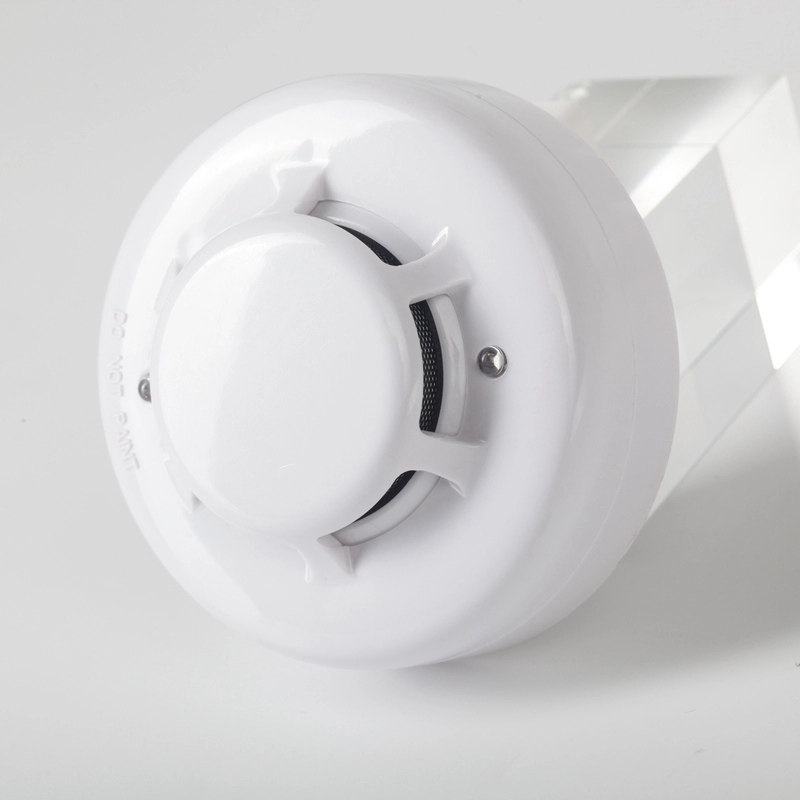

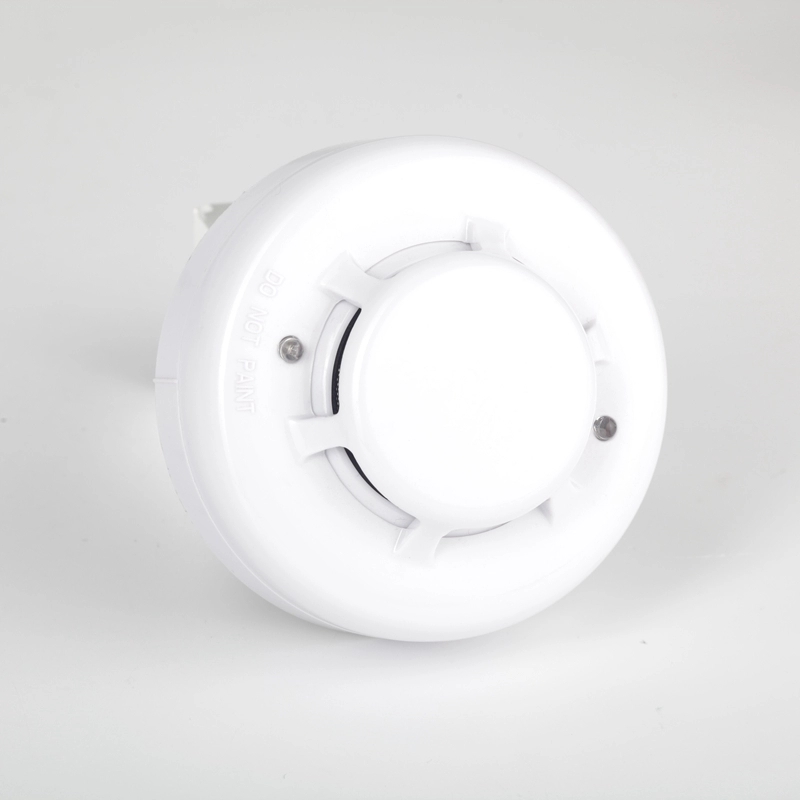

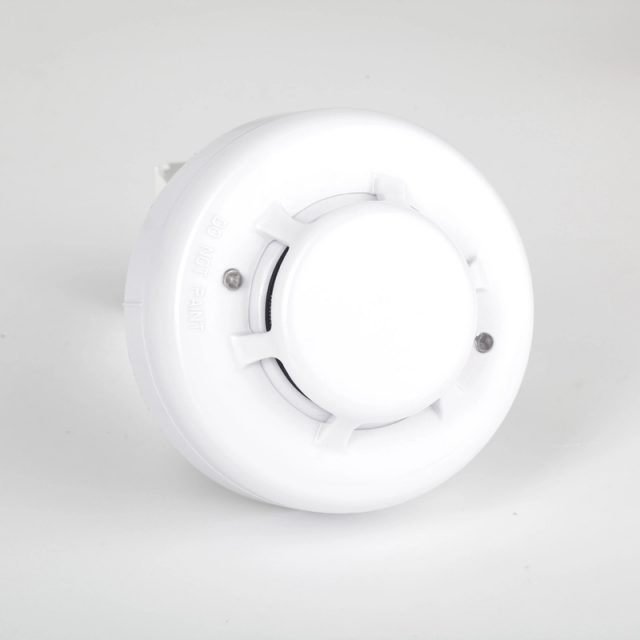

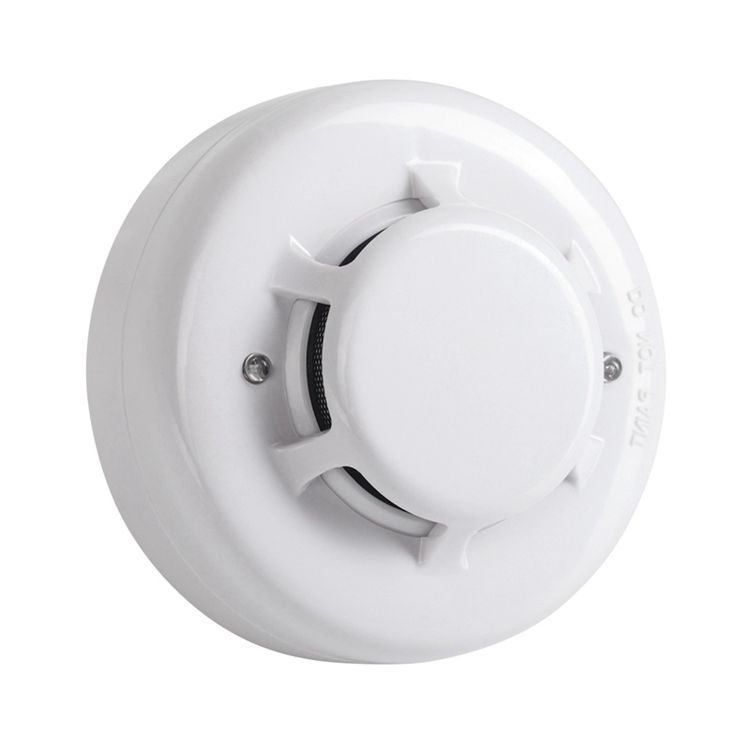

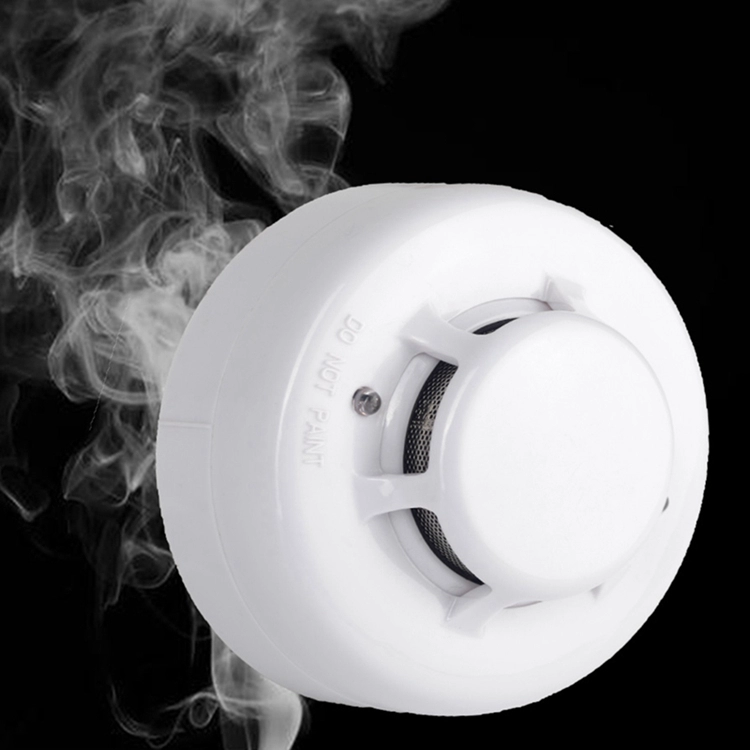

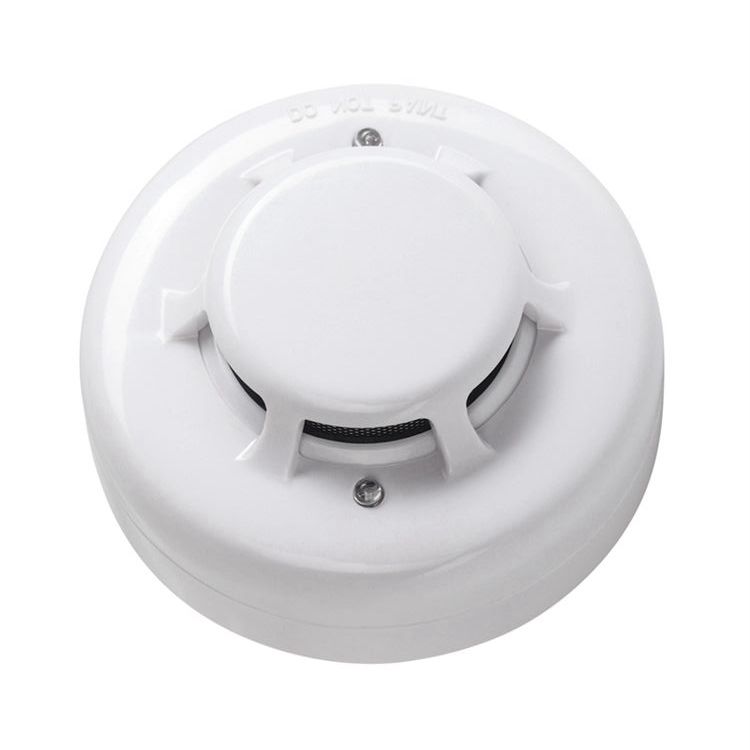

2 wire smoke detector alarm with Remote LED Alarm output

General Details

Main feature

1. Easy installation and maintenance

2. Light Labyrinth with High stability & High accuracy

3. High adaptability to the ambient,with dustproof,mothproof,moisture proof and anti-white light function

4,This is 2 wire type (4 wire please click here!)

5. DC 9-35V wide voltage operating range

6.Low standby surrent

7. Power supply non-polarized input

8. Twin LED for 360 degree visual

9.  Flashing LED power indicater

10. Alarm output is Remote LED

11. Metal shield, anti-electromagnetic interference

12. Two-year limited warranty

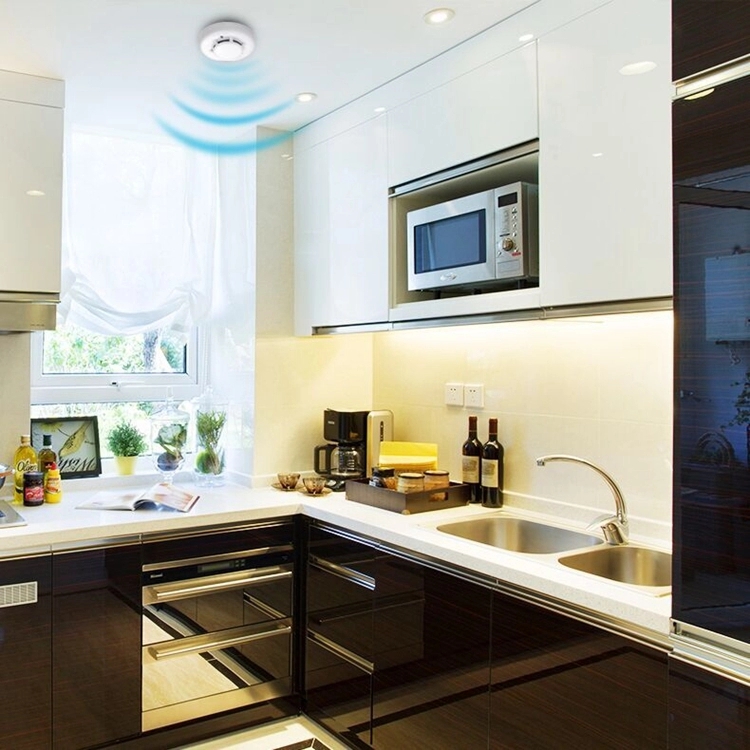

13. Suit for detect the smoke in house, shop, hotel, restaurant, office building, school etc…

Technical Specification

ModelSR-811-2
Input voltageDC9~35V
Static current50uA
Alarm current35mA at DC12V
60mA at DC24V
Alarm indicationred LED on
Operating temperature-10~+50°C
Humidity0%~95%RH(No condensation)
Alarm outputRemote LED
Contact ratingN/A
Sensitivity0.5dB/m(±0.1dB/m)
Dimension103*53mm
