General Details
Main Features:

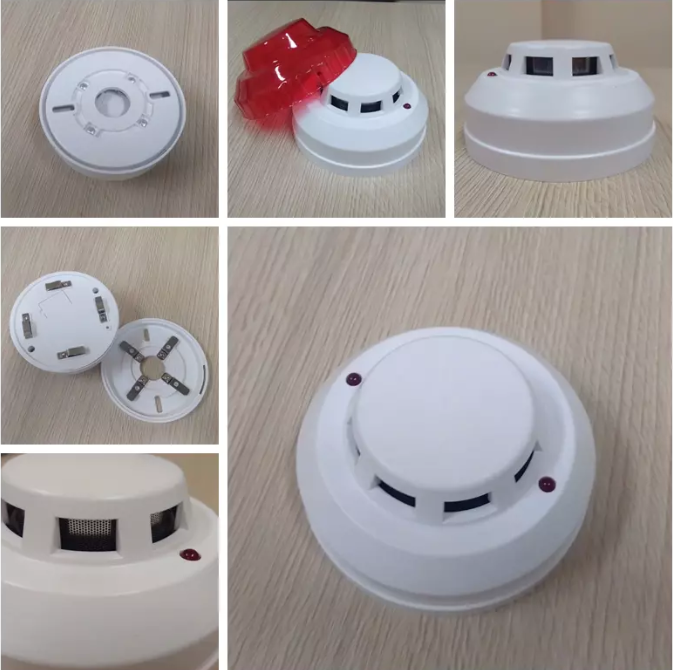

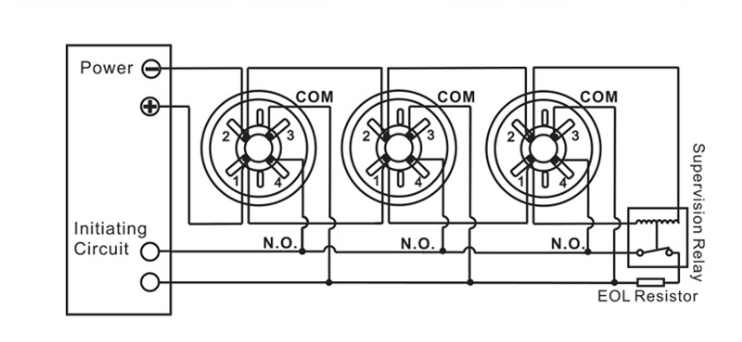

1.SR-505-4 is 4-Wire network heat detector
2.Combination rate-of-rise and fixed temperature alarm
3.MCU processing, eliminate false alarm
4.Low standby current
5.Anti-RFI &Anti-EMI
6.9-35VDC wide operating voltage range
7.LED flashing visible in 360 degrees direction
8.Power supply non-polar input
9.Alarm output is Relay output
10.Rustproof, mothproof, anti-light interference design
11.Execute criterion: GB4716, EN54-5
Technical specification:
Operating voltage | DC 9V-35V |
Static current | 12mA(NC);2 mA (NO) |
Alarm current | 5mA(NC); 15 mA (NO) |
Alarm output | Relay output |
Alarm temperature | Fixed temperature alarms: 57℃(135℉) |
Installation | Ceiling mounted |
Working environment | -10℃~+50℃(≤95%RH) |
Dimension | 103*53mm |
