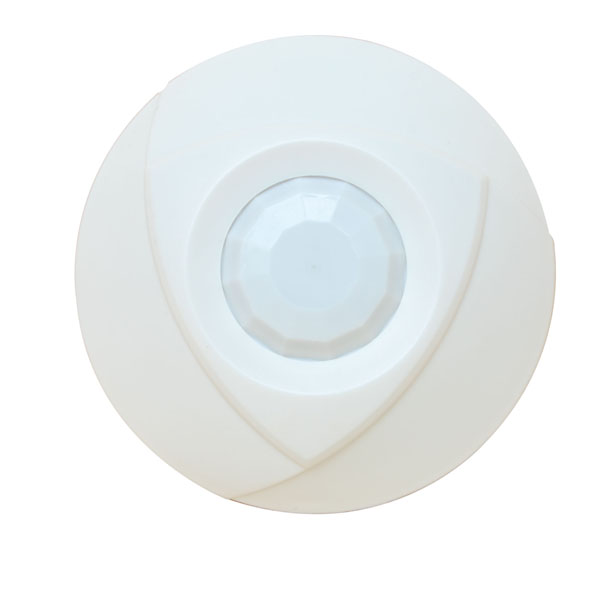

Anti burglar alarm motion sensors pir motion movement detector

General Details

Main features:

MCU control, resist false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference (20V/m-1GHz)
Fresnel lens

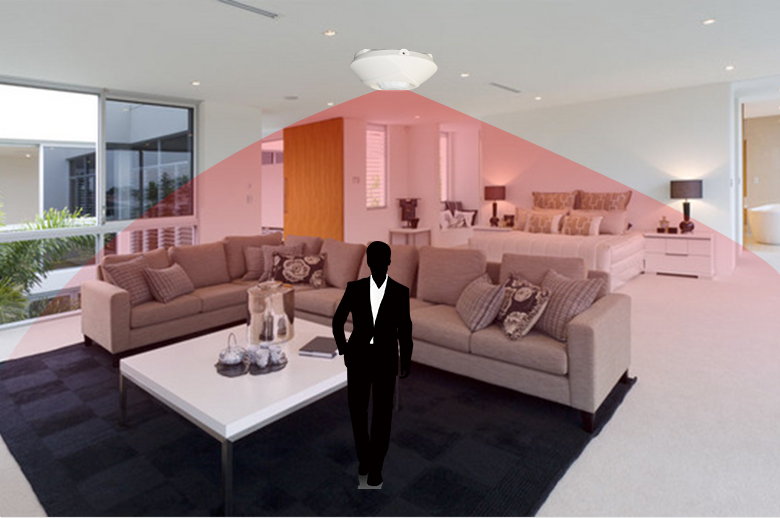

Wall/ceiling installation
Alarm output N.C. or N.O.
Alarm time optional (3s or 30s)
Intelligent floating thresholds technology
Patent appearance design

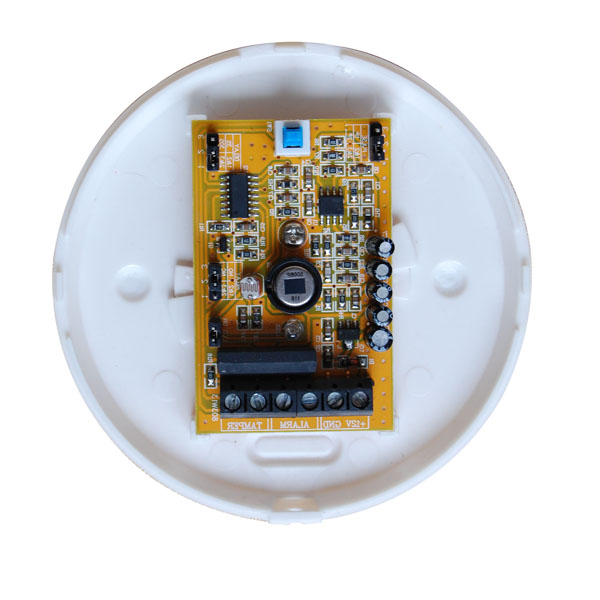

SMT manufacture technology with high stability

Technical specification:

Model NO.

SR-603W

Operating voltage

DC9V~16V

Static current

NC≤15mA   NO≤6mA

Alarm current

NC≤9mA   NO≤18mA

Alarm output

Relay output

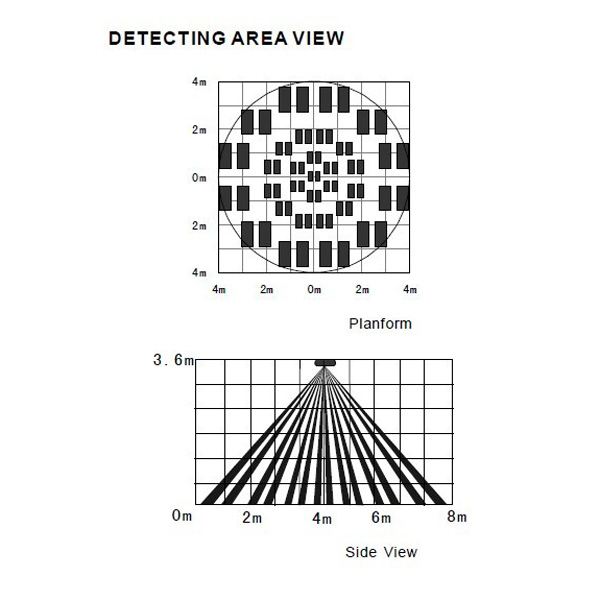

Detecting angle

360°

Detecting distance

6m

Operating temperature

-10℃~+50℃

Dimension

100mm(Dia)*32mm(H)
