DC type water alarm with Relay output (NC/NO)
General Details
Main features:

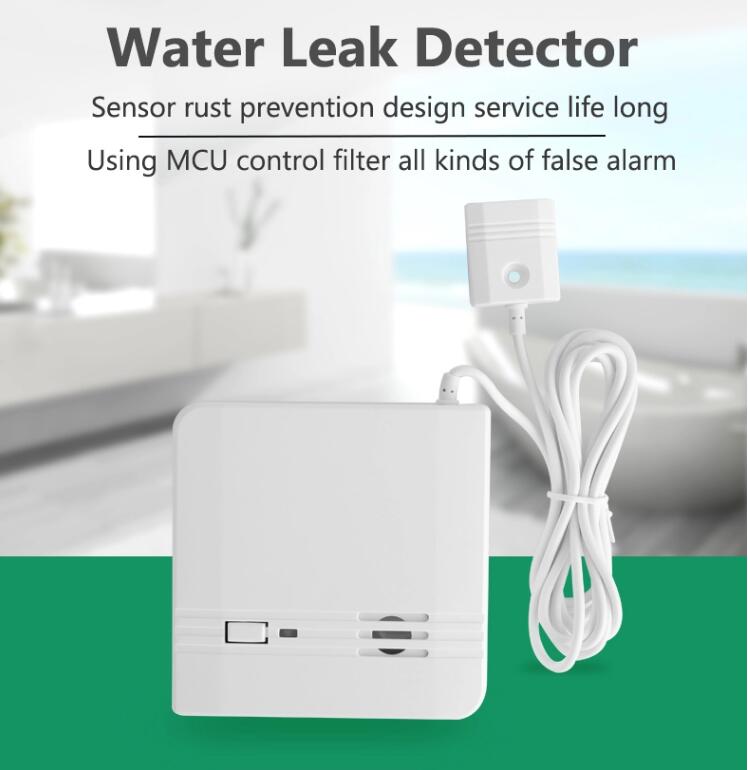

SR-W03BHC-DC is Network water leakage detector
Rust-proof metal probe, long service life
Sound and flash alarm
Low power consumption design

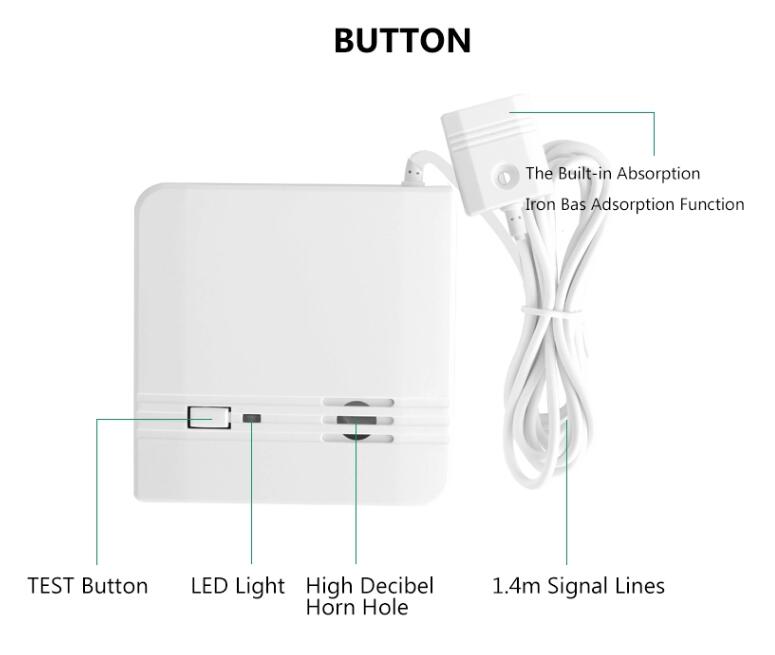

Test and hush button
Low battery warning
MCU processing, resist false alarm efficiently
SMT manufacture technology, good stability
Technical specification:
| Model NO | SR-W03BHC-DC |
| Operating voltage | DC9-24V |
| Static Current | ≤20mA |
| Alarm Current | ≤130mA |
| Alarm Indicator | Red LED and buzzer sound |
| Fault Indicator | Orange LED |
| Alarm output | Relay output(NC/NO) |
| Working environment | 0-60℃ |
| Humidity | 0-80%RH(no congelation) |
| Sound level | ≥85dB/3m |
| Hush Time | 10 minutes |
| Installation | Wall mounted or board installed |

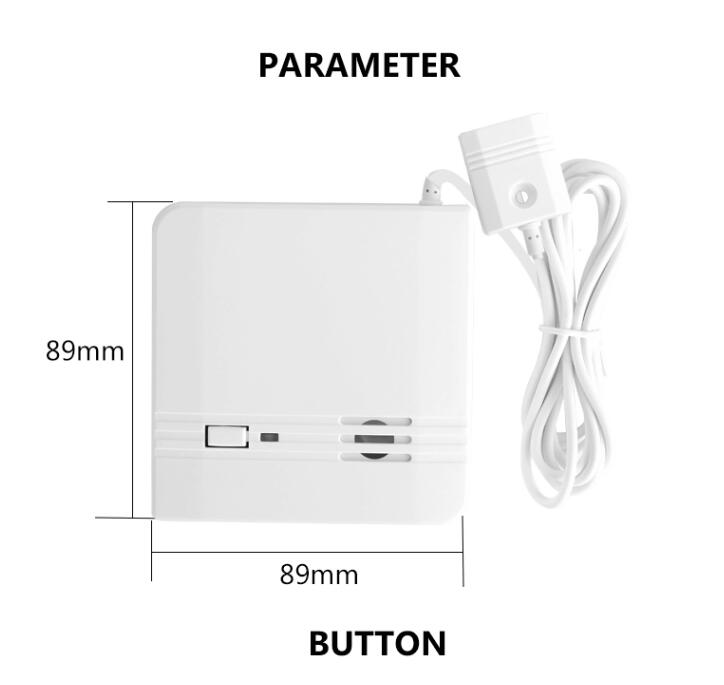

| Dimension | 89*89*28mm(bracket not included) |
SR-W03 series Water leakage detector
Independent & Network & wireless type optional
