General Details
Main Features:

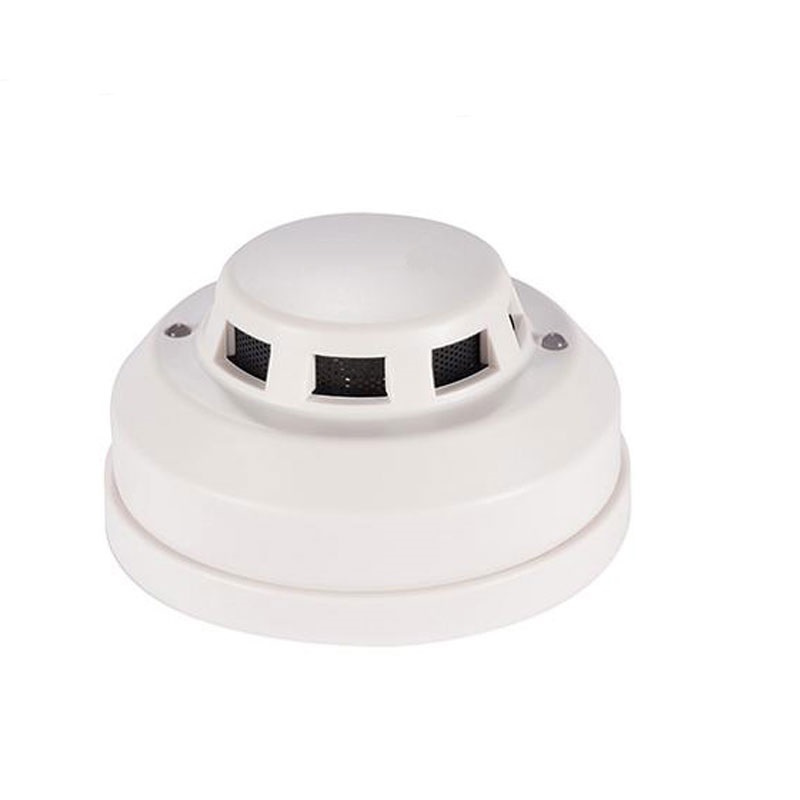

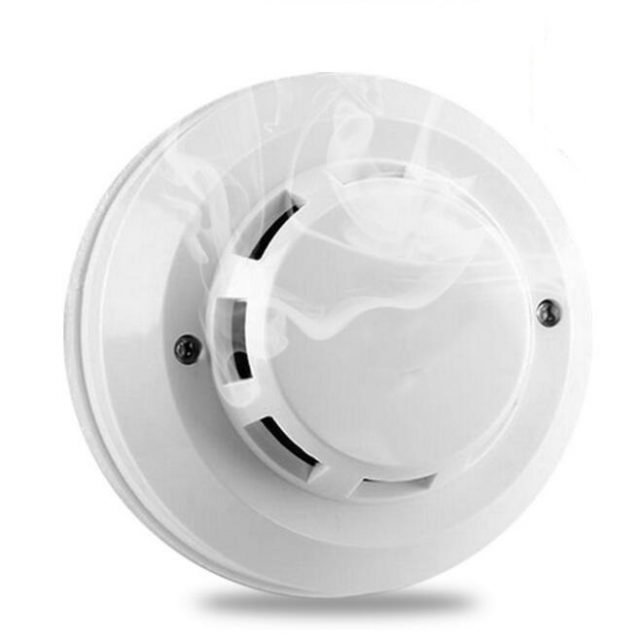

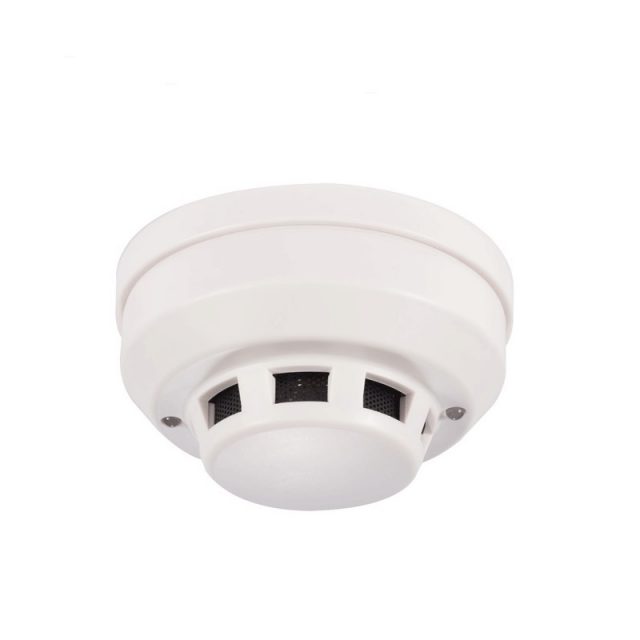

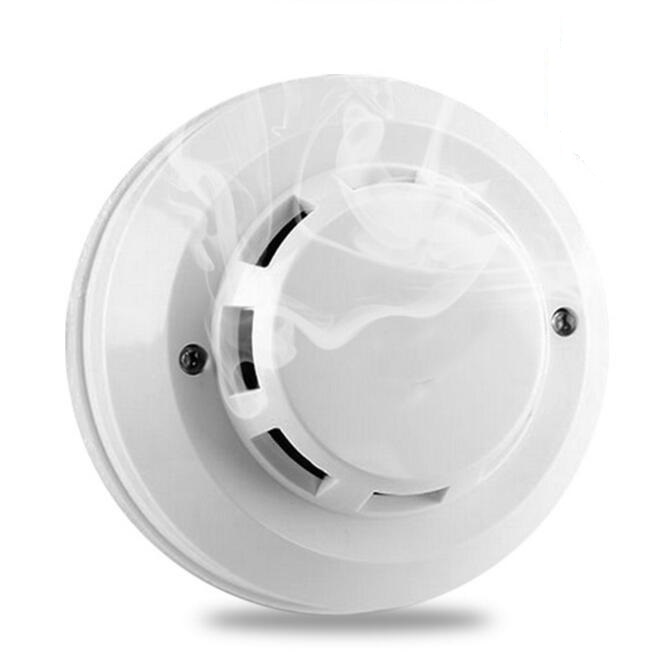

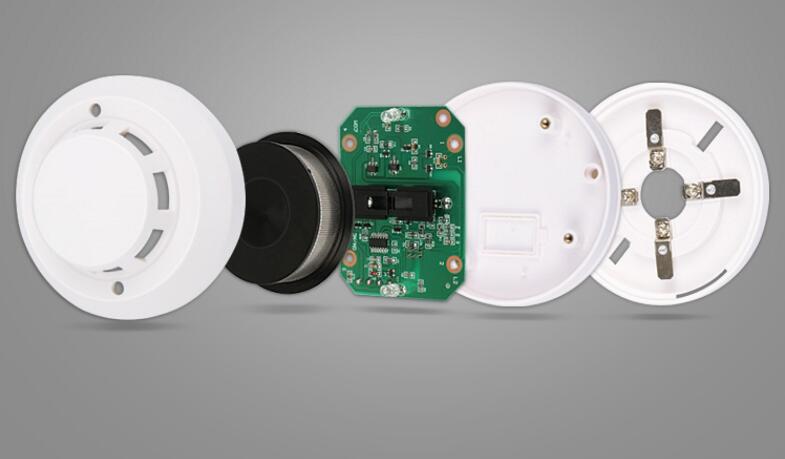

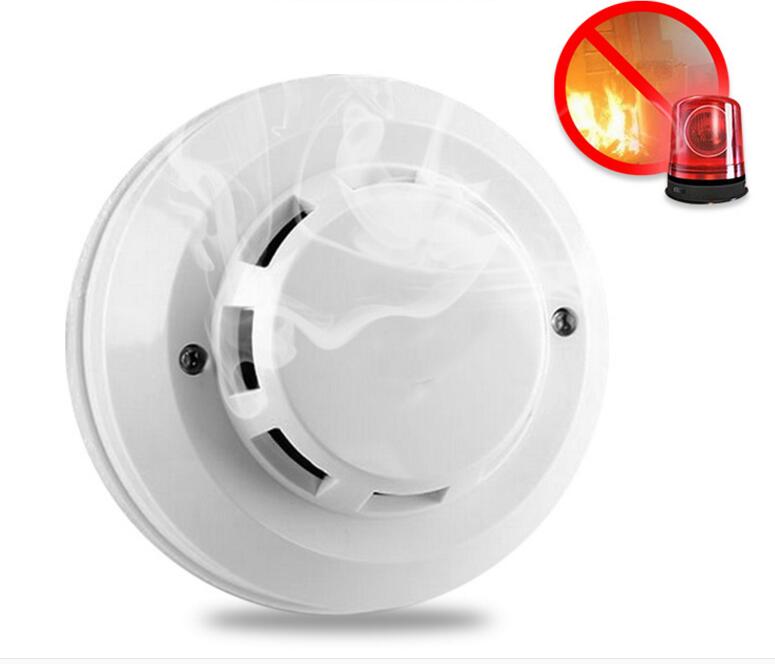

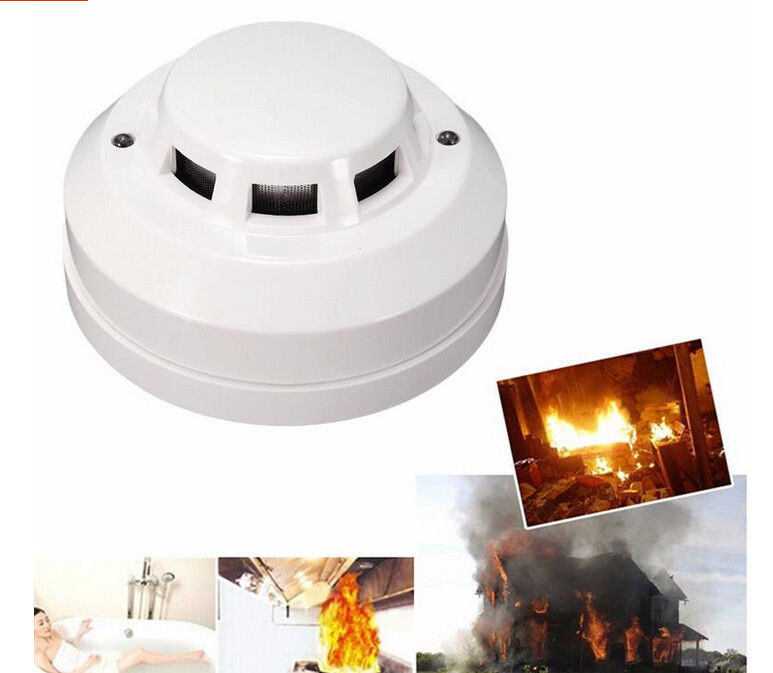

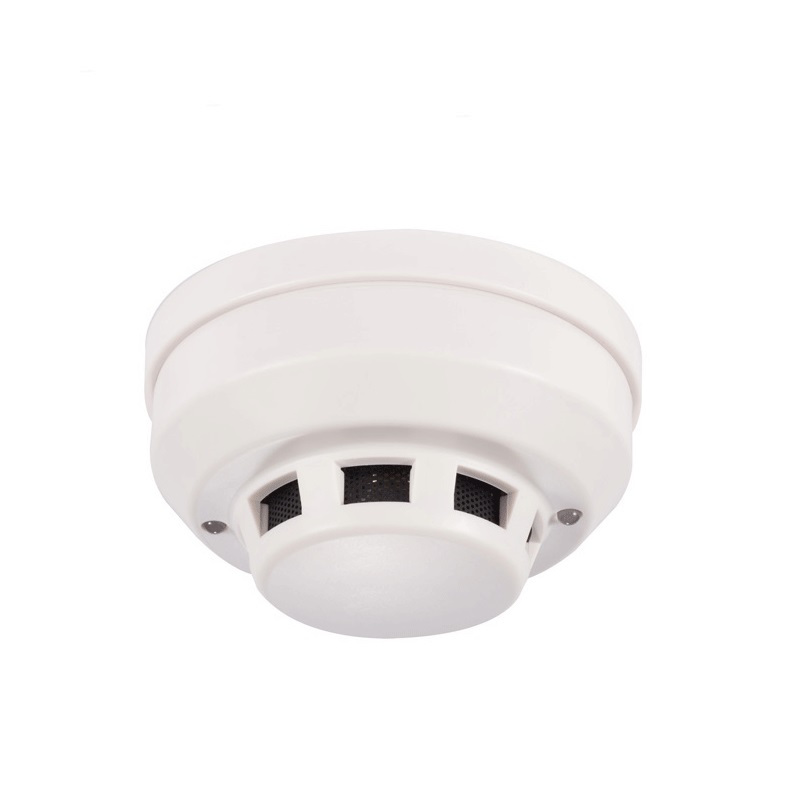

1.SR-802PC-4 is 4-Wire Network Photoelectric smoke alarm

2.Power supply non-polar input

3.Infrared photoelectric sensor

4.MCU processing, eliminate false alarm

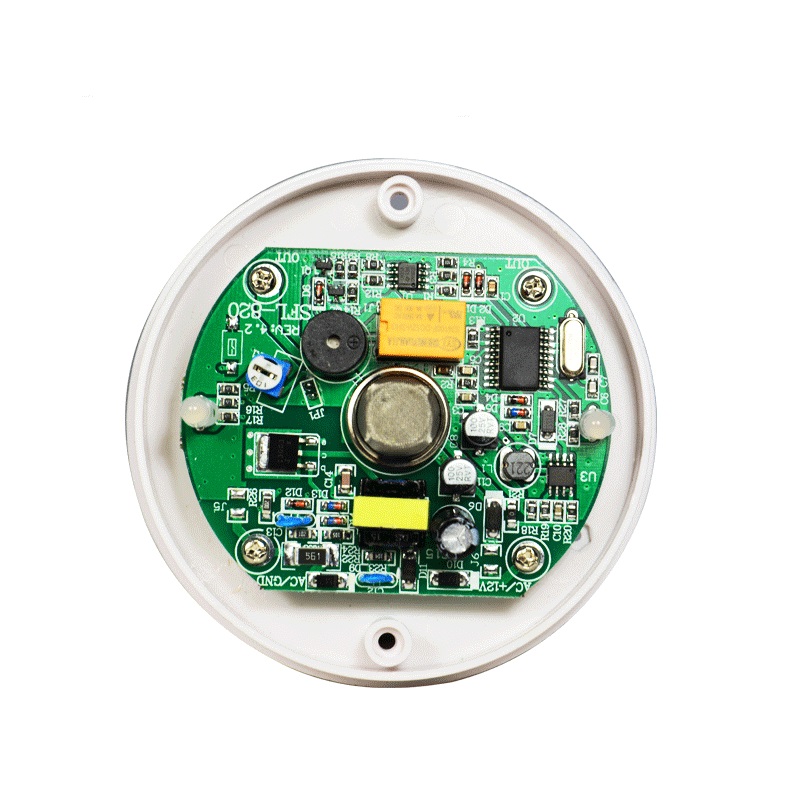

5.SMT manufacture technology, high stability

6.Dustproof, mothproof, anti-light interference design

7.Stainless steel shield, anti-RFI(20V/m-1GHz)

8.Execute criterion:UL268, GB4715, EN54-7

Technical specification:

Operating voltage
DC9~35V
Static current
12mA(NC);500uA(NO)
Alarm current
10mA(NC);18mA(NO)
Sensitivity
0.5dB/m(±0.01dB/M)
Alarm output
Relay output

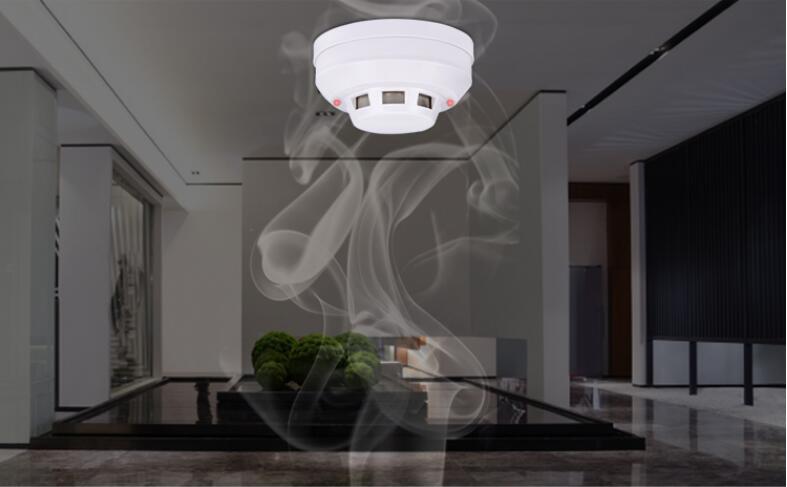

Installation
Ceiling mounted
Working environment
-10℃~+50℃(≤95%RH No congelation)

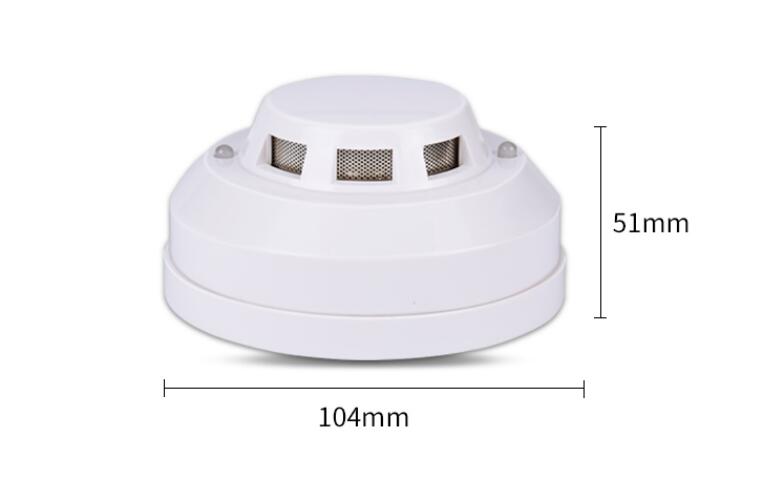

Dimension
 104*49mm
