Lithium Battery Operated Smoke Detector

General Details

Main Features:

> Battery Operated
Long-life lithium-ion battery sealed in the alarm to lengthen its lifetime to 10 years in standby condition.
> Operating Light (LED)
Flashes approximately every 53 seconds confirming unit is powered.
> Low Battery Warning
Alarm beeps every 40 seconds when the battery needs replacing.
>Alarm Pause (Hush mode)
Silence your smoke alarm by momentarily pressing the test button when non-emergency smoke (e.g. steam), causes nuisance alarms. The red light flashes every 10 seconds to remind you that the smoke alarm has been silenced. The alarm will automatically reset after 15 minutes.

>Sensitivity Test Button
Test the sensitivity, circuitry, batteries, horn.
>Loud 85 Decibel Piezo Electric Alarm
Automatically resets when hazardous condition has passed.

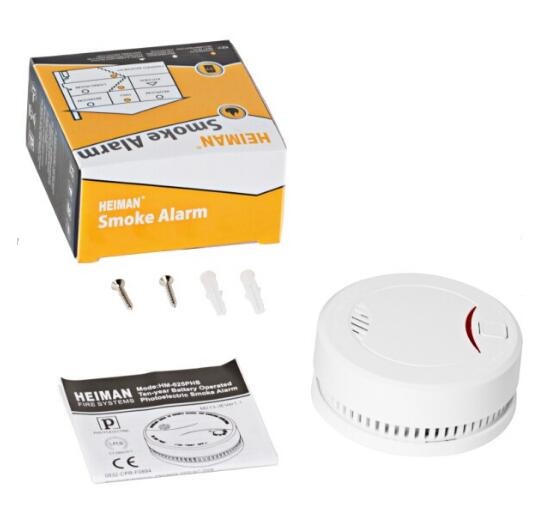

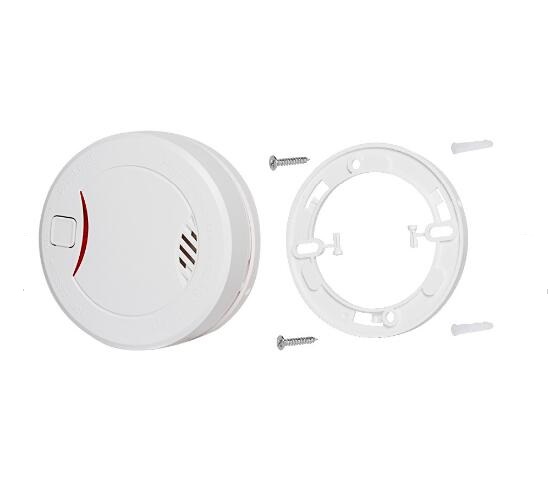

>Easy Installation
Fixings supplied.

Technical specification:

Model NO.

SR-826PHS

Operating voltage

3V lithium battery

Static current

8uA

Alarm current

35mA

Alarm output

Sound & Flash alarm

Sound level

85dB/3m

Installation

Ceiling mounted

Sensitivity

1.8%ft±0.8%ft

Working environment

-10℃~+50℃,(≤95%RH No congelation)

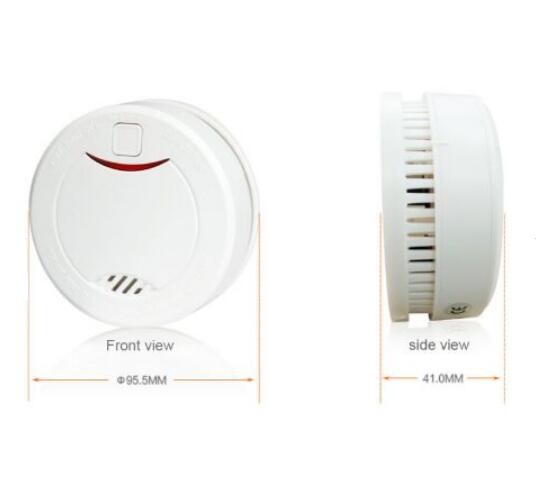

Dimension

Φ95*41mm
