2-Wire Network Photoelectric smoke alarm

General Details

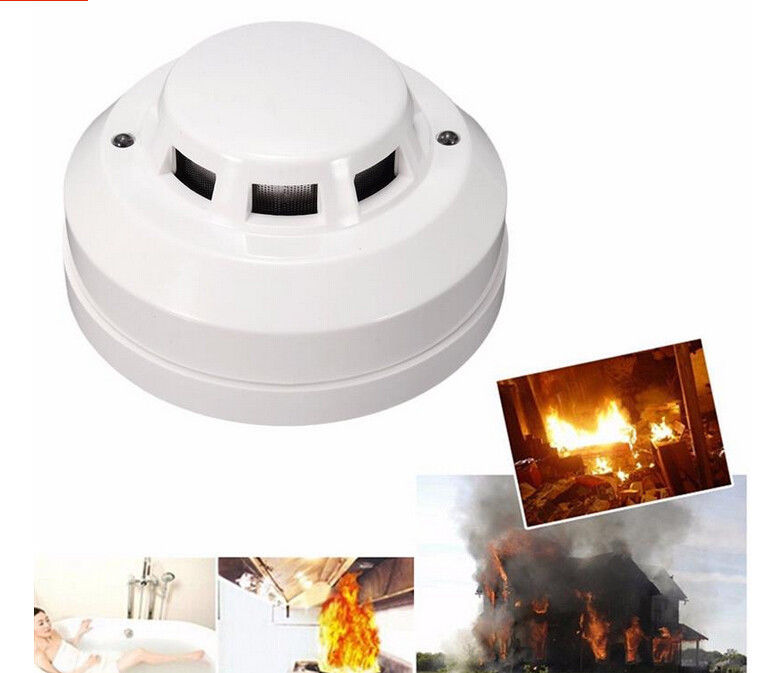

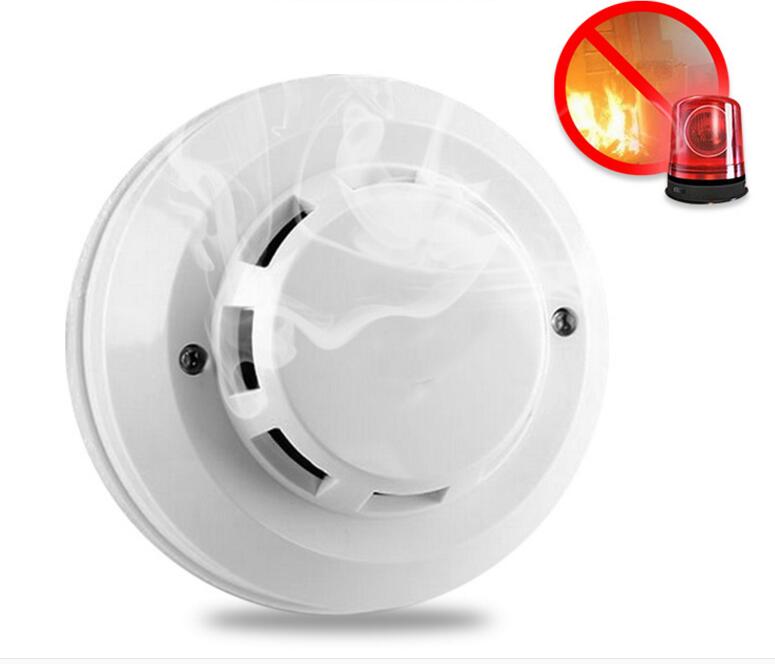

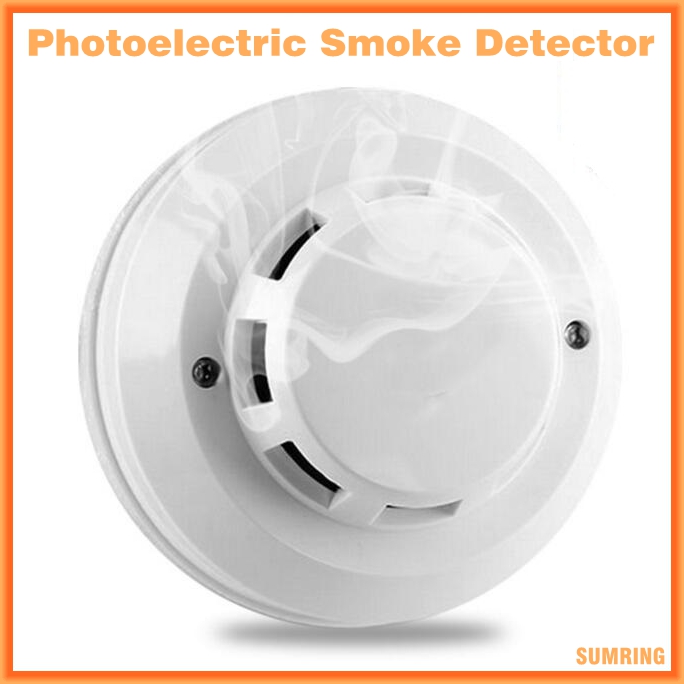

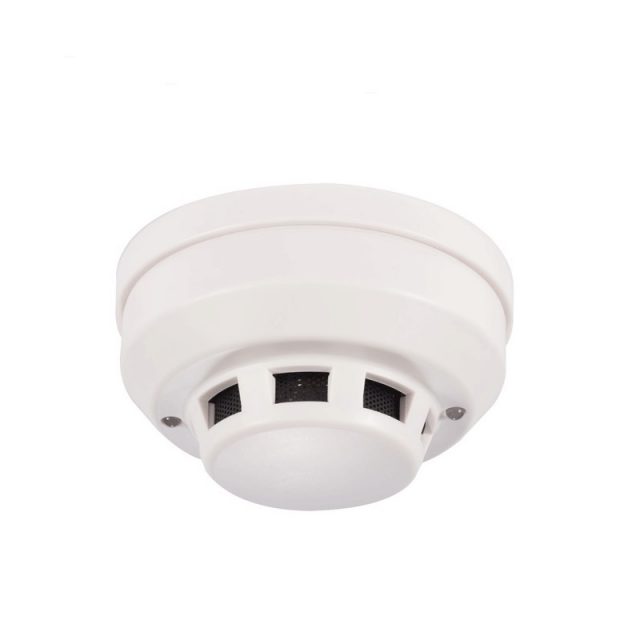

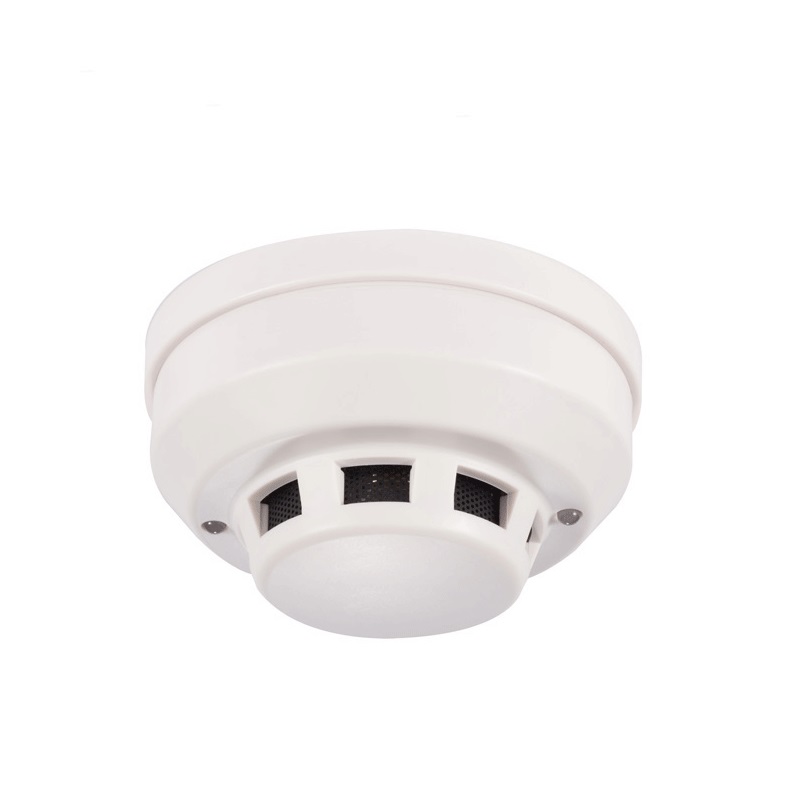

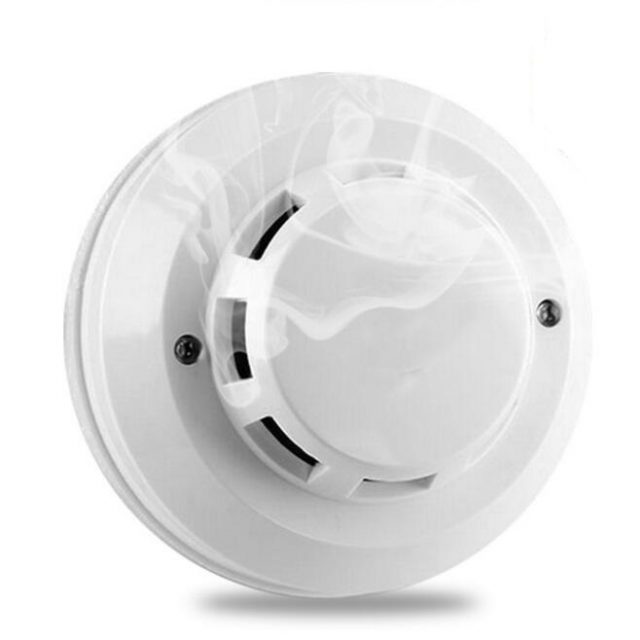

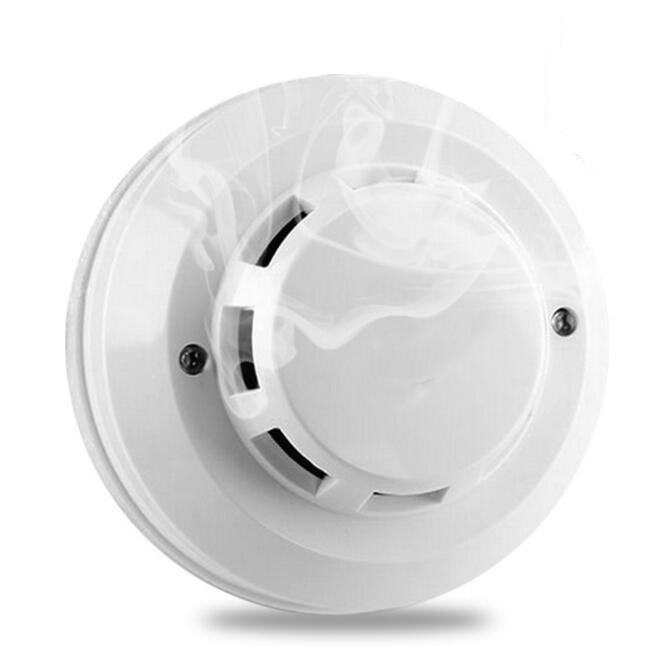

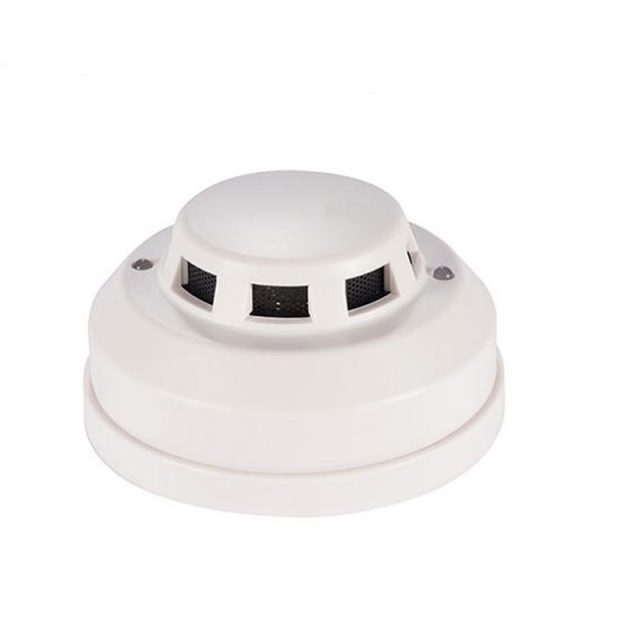

SR-801 is 2-Wire Network Photoelectric smoke alarm

Power supply non-polar input

Infrared photoelectric sensor

MCU processing, eliminate false alarm

SMT manufacture technology, high stability

Dustproof, mothproof, anti-light interference design

Stainless steel shield, anti-RFI(20V/m-1GHz)

Execute criterion:UL268, GB4715, EN54-7

Technical specification:

Model No.SR-801
Operating voltageDC9~35V
Static current55uA
Alarm current35mA@DC12V;60mA@DC24V
Sensitivity0.5dB/m(±0.01dB/M)
Alarm outputRemote LED indicator
InstallationCeiling mounted
Working environment-10℃~+50℃(≤95%RH No congelation)
Dimension104*49mm
